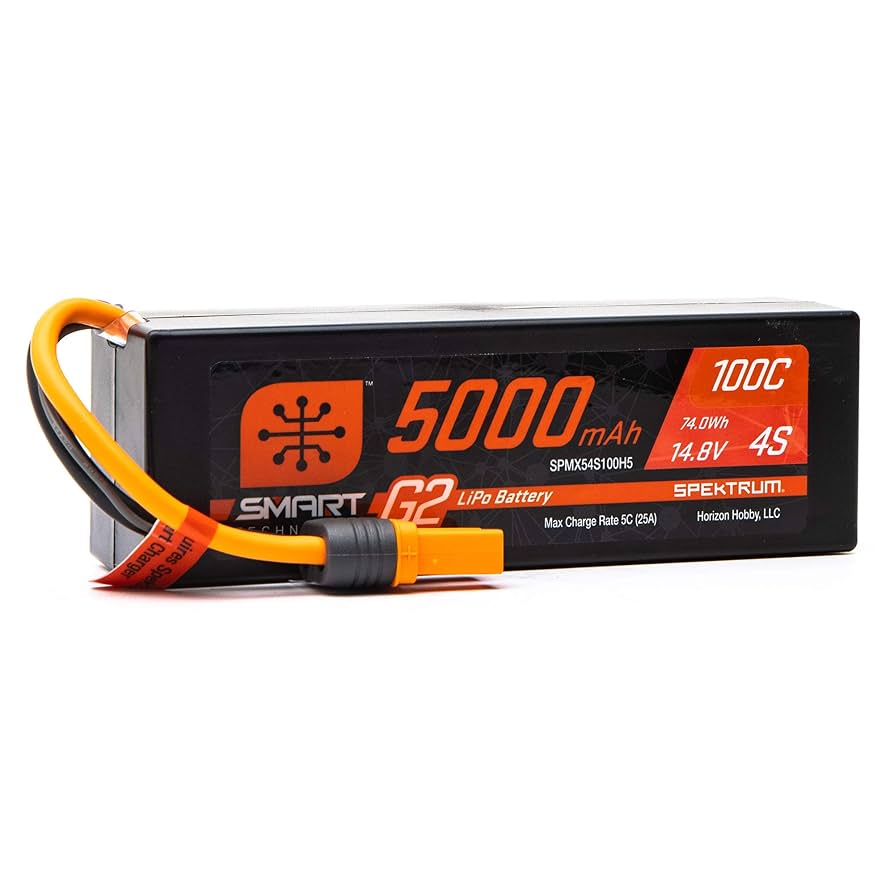

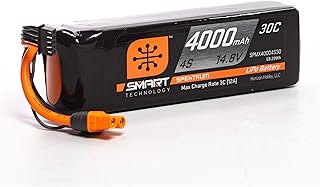

Spektrum 14.8 V (4S) Batteries

Spektrum 4S LiPo batteries deliver stable, high-voltage output for platforms designed to run 14.8 V. They pair cleanly with IC3/IC5 connectors and, in Smart/Smart G2 variants, provide charge profiles, cycle logging, and pack data when used with compatible Spektrum gear.

When to Choose 4S

• Choose 4S if you want higher sustained speed, the ability to run taller gearing, and lower current draw for the same power than 3S.
• Choose 4S over 6S if you need controllable power that’s easier on drivetrains and suitable for tighter tracks or smaller spaces.
• Avoid 4S if your ESC, motor, or drivetrain are not rated for 14.8 V, or if your battery tray cannot fit a 4S pack.

Key Applications

• 1/8 buggies & truggies: Strong mid-run voltage for consistent lap times and clean jump clearance.
• Large bashers: Punchy acceleration with less stress than 6S on tires, diffs, and driveline.
• Medium to large RC boats: Efficient plane-out and sustained pulls with reduced ESC heat compared to lower voltage.
• Performance quads / larger FPV: Balanced weight-to-thrust for freestyle and moderate long-range on appropriate builds.

Compatibility Checklist

• Voltage rating: ESC and motor must be 4S (14.8 V) capable. Many 1/8 ESCs are 3–6S; verify your specific model.
• Motor kv pairing: Common 1/8 setups use ~1900–2200 kv on 4S. Higher kv increases heat and may require smaller pinions.
• Connectors: IC5 is typical for higher currents; IC3 can be suitable for lighter loads. Use quality adapters only if necessary.
• Physical fit: Check tray length, height, and strap clearance; hard-case packs are preferred for cars/trucks.

How to Choose a Spektrum 4S Pack

1. Capacity (mAh): 5000–6500 mAh is common for 1/8 racing and bashing. Boats may benefit from larger capacities if space and balance allow.
2. Discharge rating (C): Higher C helps with burst current for heavy vehicles and aggressive gearing. Prioritize reputable brands and realistic ratings over printed numbers.
3. Case type: Hard-case for land vehicles; soft-case for boats and air where weight/fit matter.
4. Smart vs. Smart G2: Smart features enable automated charge profiles, cycle tracking, and pack data with compatible Spektrum chargers/ESCs. G2 streamlines balancing through the main lead on supported chargers.
5. Connector: Prefer IC5 for 1/8 and boats; IC3 may suit lighter duty or smaller ESCs.

Runtime Estimates

Approximate runtime (minutes) = (Capacity in Ah ÷ Average current in A) × 60.

• 1/8 buggy on 4S 5000 mAh, average 40 A: ~7.5 minutes.
• 1/8 truggy on 4S 6500 mAh, average 45 A: ~8.5–9 minutes.
• Medium boat on 4S 5000 mAh, average 60–80 A: ~3.5–5 minutes.

Actual runtime varies with gearing, track, temperature, and driving style.

Setup Tips for Best Results

• Gearing: If moving from 3S to 4S, start with 1–2 teeth smaller pinion, test temps, then adjust.
• Punch/traction: Use punch control or throttle curves to prevent wheelspin and reduce drivetrain shock.
• Thermal checks: After gearing changes, target motor < 80–90°C (175–195°F) and pack < 60°C (140°F).
• Mounting: Secure packs firmly; avoid hard impacts and vibration—especially important in boats.

Charging & Care

• Charge rate: 1C is a safe baseline (e.g., 5000 mAh → 5 A). Only use higher rates if the pack explicitly supports it.
• Balancing: Balance-charge every cycle. Smart/Smart G2 packs perform balancing with compatible Smart chargers.
• Storage: Store around 3.75–3.85 V per cell (≈15.0 V for 4S). Keep packs cool and dry.
• Cutoff: Set LVC to ~3.3–3.5 V per cell under load to protect the pack.
• Cool before recharge: Let packs return to ambient temperature prior to charging.
• Inspection: Do not use packs that are swollen, punctured, or have damaged leads/cases.
• Safety: Never charge unattended; use a LiPo-safe bag or fire-resistant surface.

Alternatives

• 3S: For lighter vehicles, tighter tracks, or when your electronics are limited to lower voltage.
• 6S: For maximum speed and larger/heavier builds—requires robust drivetrain and careful throttle management.
• Two 2S in series: Possible if both packs are the same age, capacity, C rating, and state of charge. Use a proper series harness and monitor balance closely.

FAQs

Do I need a Spektrum Smart charger for these packs?

No, they charge like standard LiPos, but Smart/Smart G2 features (auto charge profiles, pack data, cycle count) require a compatible Spektrum Smart charger and, for telemetry, compatible ESC/receiver.

IC3 vs. IC5—what should I pick?

Use IC5 for most 1/8 cars, trucks, and boats due to higher current handling. IC3 can work for lighter loads or smaller ESCs.

What cutoff voltage should I set?

Set your ESC low-voltage cutoff to about 3.3–3.5 V per cell (13.2–14.0 V for 4S). Stop running if performance sags significantly.

Can I run two 2S packs instead of one 4S?

Yes, in series, but only use matched packs (same brand, capacity, C rating, age, and similar cycle count). Charge and store them together to keep balance aligned.

Hard-case or soft-case?

Hard-case is recommended for land vehicles to resist impacts and abrasion. Soft-case saves weight and can fit better in boats and aircraft.

Bottom Line

Spektrum 14.8 V (4S) batteries offer dependable, high-voltage performance with smart integration options. If your setup is 4S-rated and you want consistent speed with manageable heat and drivetrain load, these packs are a strong choice.
