Shark Vacuum Parts: How to Choose, Replace, and Maintain

Get the right replacement parts to restore suction, improve pickup, and extend the life of your Shark vacuum. Use OEM Shark parts when available for guaranteed fit, or select high‑quality compatible parts when OEM is discontinued. The guidance below helps you confirm compatibility, plan maintenance, and install common parts quickly and safely.

Find the Right Part

• Locate your model number: Check the rating label on the bottom of the vacuum, inside the dust cup area, or on the battery pack (cordless). Examples: NV, ZU, LA (uprights); IZ, IF, IX (cordless); HV (stick); RV (robot).
• Match by series and floorhead: DuoClean/PowerFins soft rollers and brushrolls vary by nozzle style—confirm the nozzle part or your serial prefix.
• Filter shape matters: Round vs rectangular pre-motor filters and HEPA frames differ by model; compare photos and dimensions.
• Battery codes: Cordless packs list a code (e.g., XBAT, XBATT). Match voltage and connector style exactly.
• Part numbers: If your manual lists a part number, search by that first for the most reliable match.

Maintenance Schedule and Typical Install Times

Part	When to Replace	Typical Interval	Install Time
Pre-motor foam/felt filters	Reduced suction, visible dirt buildup	Every 3–6 months (rinse monthly if washable)	1–3 minutes
HEPA/post-motor filter	Odor, dust blowback, torn media	Every 6–12 months (replace; only rinse if manual says washable)	1–2 minutes
Brushroll / DuoClean soft roller	Frayed bristles, melted ends, hair wrap you can’t clear	6–18 months depending on floors and pets	5–10 minutes
Belts (models with belts)	Brush not spinning, burning smell	12–24 months or when slipping/snapped	10–20 minutes

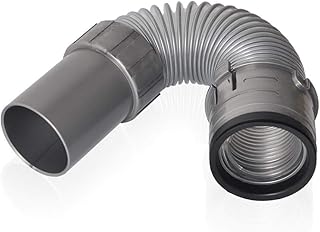

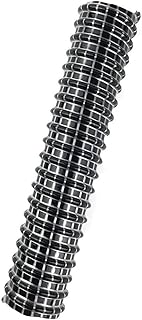

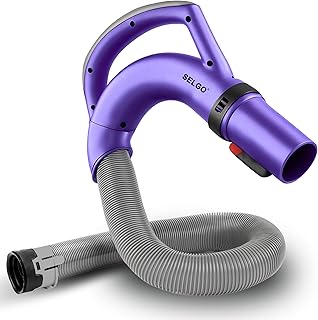

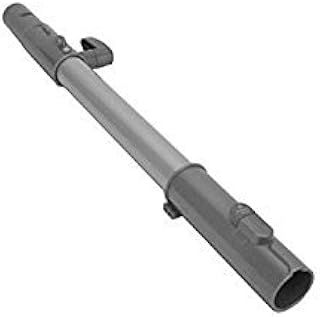

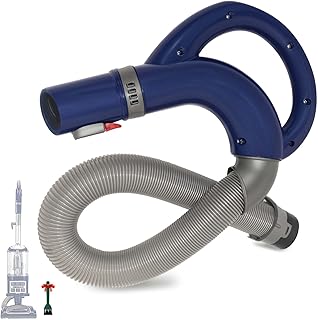

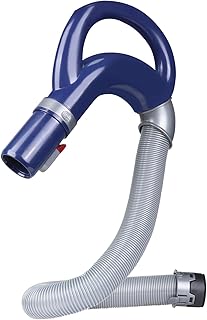

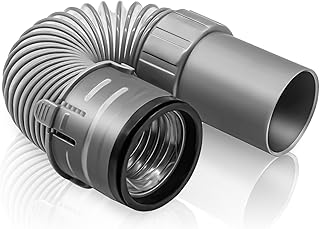

Hoses/wands/seals	Cracks, loss of suction, whistling air leaks	As needed	3–10 minutes
Cordless battery pack	Short runtime, won’t hold charge	2–4 years or 300–500 cycles	1–3 minutes (swappable packs)

Quick Install Guides

Filters (pre-motor and HEPA)

1. Power off and unplug; remove the dust cup.
2. Access the filter door. Swap in the new foam/felt and HEPA filters in the correct order.
3. If washable per your manual: rinse with cold water only, air-dry 24 hours, then reinstall.

Brushroll or Soft Roller

1. Unplug. Flip the floorhead and open the access plate (latches or screws).
2. Lift out the old roller. Clear debris from bearings and end caps.
3. Seat the new roller(s) with arrows oriented as marked, close the plate, and test.

Belt (if applicable)

1. Unplug. Remove the bottom plate and brushroll.
2. Loop the new belt over the motor spindle and brushroll, ensuring correct alignment.
3. Reinstall the brushroll and plate. Spin by hand to confirm smooth movement.

Cordless Battery

1. Power off and remove the battery. Allow a hot pack to cool before handling.
2. Match voltage/connector. Slide or click the new battery into place until it locks.
3. Charge fully before first use to calibrate runtime.

When to Choose Each Option

• OEM parts: Best fit and performance on current models; choose if your vacuum is under warranty or the part is critical (motors, electronics).
• Quality compatible parts: Good value for older/discontinued models or high-turnover items (filters, soft rollers) when OEM is unavailable.
• Maintenance kits: Ideal if you’re behind on upkeep—bundle includes filters and rollers matched to a model series.
• Bulk packs (6–12): Suited for property managers, housekeeping, or service providers maintaining multiple units.

Safety and Care

• Always unplug before service; remove batteries from cordless units.
• Do not wash non-washable HEPA filters—check your manual.
• Use scissors to cut hair from rollers; avoid knives that can nick bristles.
• Let motors cool 30 minutes after thermal shutoff before restarting.
• Recycle spent lithium batteries through a local battery recycling program.

Packs and Bulk Options

• Single replacement: Quick fix for one machine.
• 2–packs/3–packs: Keep spares on hand; reduces downtime.

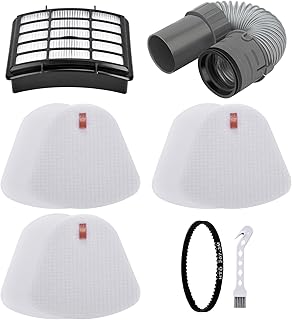

• Model-specific maintenance kits: Typically include foam/felt, HEPA, and rollers.
• Bulk cases (6 or 12): Cost-efficient for teams and schedules with planned quarterly service.

FAQ

• How do I know a part fits my Shark? Match your exact model number and, if possible, the part number from the manual. Compare photos, shapes, and connector styles.
• Why did my brush stop spinning? Hair wrap, a broken belt (on belt-driven models), or a tripped brushroll protector. Unplug, clear obstructions, replace worn parts, and press the brushroll reset (if your model has one).
• Should I wash or replace filters? Rinse only filters labeled washable. Otherwise, tap to release dust and replace on schedule to protect suction and the motor.
• Are batteries interchangeable? Only within the same voltage and connector family. Always match the battery code and voltage to your model.
• Will new rollers improve pickup? Yes—fresh bristles and soft rollers restore contact with floors, improving debris capture and reducing scatter.
