Prismatic Batteries: Practical Guide and Selection Tips

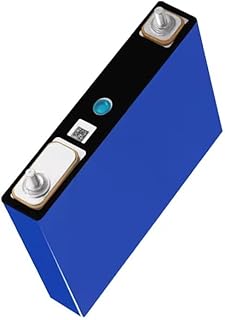

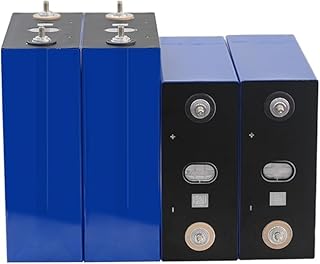

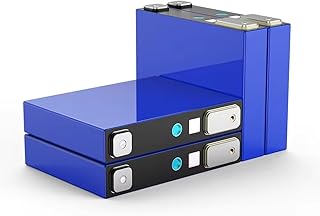

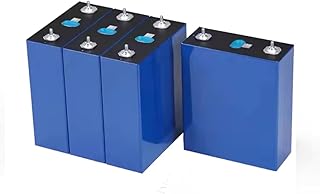

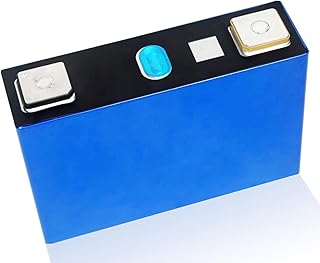

What is a prismatic battery?

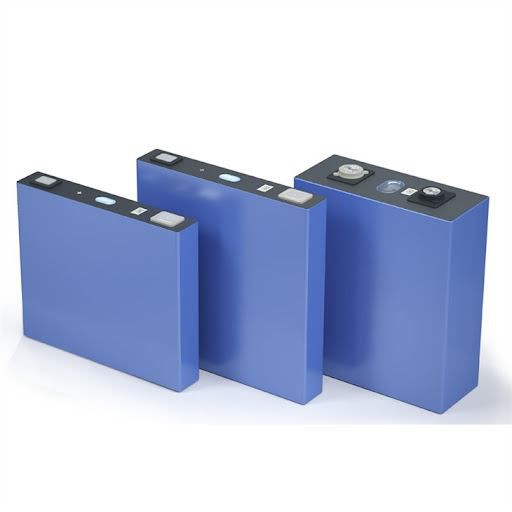

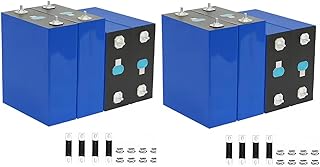

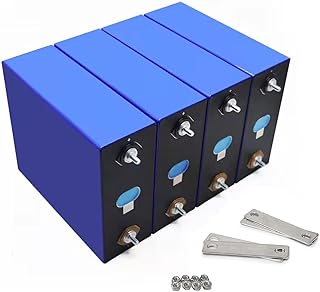

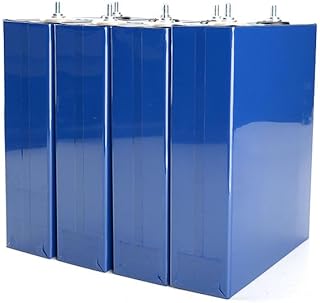

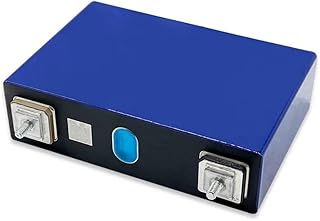

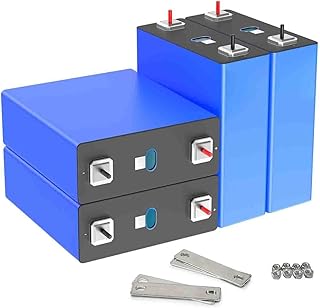

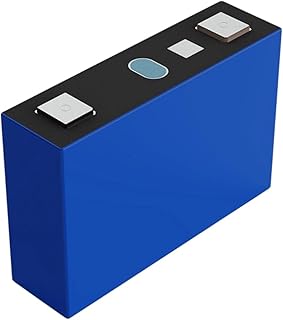

Prismatic batteries are rectangular cells that stack flat electrodes inside a rigid metal or reinforced polymer case. Their shape increases packing efficiency and simplifies busbar and cooling layouts compared with cylindrical cells. They are common in electric vehicles, stationary energy storage, industrial equipment, and compact devices where space and straightforward pack assembly matter.

Key advantages

• High packing efficiency: Flat sides minimize wasted space in modules and enclosures.
• Simplified busbars and cooling: Large, flat contact areas suit cooling plates and low-resistance interconnects.
• Customizable dimensions: Width, height, and thickness can be tailored for target capacity and enclosure fit.
• Mechanical robustness: Rigid cans resist external damage better than soft pouches.

Trade-offs to consider

• Weight vs. pouch: The hard case adds mass compared with pouch cells.
• Thermal gradients: Large flat cores can heat unevenly without good cooling design.
• Swelling management: Lithium cells can swell with age or abuse; large-format prisms often need end-plate support or light compression per the datasheet.
• Cost in low volume: Custom sizes may carry higher tooling or minimum order costs.

Common chemistries and typical specs

Chemistry	Nominal V/cell	Energy density (Wh/kg)	Cycle life to ~80%	Notes
Lithium-ion NMC/NCA	3.6–3.7 V	140–260	800–1,500+	High energy; typical charge limit ~4.2 V. Needs tighter thermal control.
Lithium Iron Phosphate (LFP)	3.2 V	90–160	2,000–6,000+	Excellent thermal stability and life; typical charge limit ~3.65 V.
Nickel-Metal Hydride (NiMH)	1.2 V	50–100	500–1,000+	Less common in prism form; robust, lower energy.

Typical large-format prismatic Li-ion capacities range from 10–300 Ah per cell; thickness may span 5–60 mm, with widths/heights from 40–200+ mm. Always verify your target cell’s datasheet values.

When to choose prismatic vs. other formats

Use prismatic if:

• You need high capacity per cell (e.g., 50–300 Ah) to minimize parallel groups.
• Your enclosure favors flat modules and easy cold-plate integration.
• Rapid pack assembly with simple busbars is a priority.

Consider alternatives if:

• Pouch cells: You need the lightest pack and can provide controlled compression and protection.
• Cylindrical cells: You need excellent thermal uniformity, high production scalability, or fine-grained redundancy via many small cells.

Sizing and runtime estimates

Quick estimate for DC loads: runtime (hours) ≈ capacity (Ah) ÷ load current (A). For watt-based loads: usable energy (Wh) ≈ nominal pack voltage × capacity (Ah) × efficiency.

Example: 12.8 V LFP pack powering a 600 W inverter

One 4s LFP prismatic pack, 100 Ah: 12.8 V × 100 Ah = 1,280 Wh. With ~85% inverter efficiency, usable ≈ 1,280 × 0.85 = 1,088 Wh. Runtime ≈ 1,088 Wh ÷ 600 W ≈ 1.8 hours. Real-world results vary with temperature, discharge rate, and cutoff settings.

Choose a discharge rate that matches the datasheet: many large prismatic cells support 0.5C–1C continuous and 2C–3C short bursts, depending on chemistry and cooling.

Integration checklist

• BMS: Over/under-voltage, over-current, short-circuit, and over/under-temperature protection with passive or active cell balancing.
• Mechanical: Rigid mounting, isolation from vibration, and manufacturer-specified compression/end plates for large cells.
• Thermal: Keep cells in the 15–35°C sweet spot for long life. Use cold plates, heat spreaders, or managed airflow. Maintain consistent cooling across cells.
• Electrical: Low-resistance busbars, proper torque on terminals, insulation barriers, and fusing/contactors appropriate to fault currents.
• Clearances: Allow space for expansion and service; maintain creepage/clearance per voltage class.
• Compliance: Use cells/modules with relevant certifications (e.g., UN 38.3 for transport; consult UL/IEC standards applicable to your product).

Charging and care best practices

• Voltage limits: Follow the datasheet. Typical max is ~4.2 V/cell (NMC/NCA) or ~3.65 V/cell (LFP). Never exceed limits.
• Charge rates: Moderate charging (≤0.5C) improves longevity; reserve fast charging for when needed and within temperature limits.
• Temperature: Typical charge 0–45°C, discharge -20–60°C (chemistry-dependent). Avoid high-heat storage.
• State of charge (SOC): For daily cycling, 20–80% SOC windows can lengthen life. For storage >1 month, store ~40–60% SOC in a cool, dry place.
• Balancing: Ensure periodic cell balancing via the BMS, especially in series strings.
• Inspection: Check for swelling, corrosion, or loose terminals. Remove damaged cells from service safely.

Typical applications

• Electric mobility: Traction batteries where module-level serviceability and flat packaging help packaging efficiency.
• Energy storage systems (ESS): Residential and commercial systems favor LFP prismatic cells for stability and long life.
• Industrial and medical equipment: Reliable, high-capacity modules for forklifts, AGVs, backup power, and carts.
• Electronics and tools: Select devices that benefit from slim, rigid packs with straightforward mounting.

Safety and compliance

• Use only with a compatible BMS and charger designed for the specific chemistry.
• Avoid mechanical damage and punctures; do not crush, short, or expose to fire.
• Provide enclosure venting paths away from users and critical electronics.
• Transport and dispose per regulations; verify UN 38.3 testing for shipped cells and packs.

FAQ

Are prismatic batteries safer than cylindrical cells?

Safety depends more on chemistry (e.g., LFP vs. NMC), pack design, BMS, and thermal management than shape. Prismatic cells can be very safe when used within specifications and integrated correctly.

How long do prismatic LFP cells last?

Many reach 2,000–6,000+ cycles to ~80% capacity under moderate charge/discharge rates and good thermal control. High temperatures, deep cycles, and fast charging reduce life.

Do I need compression on large prismatic cells?

Often yes. Many large-format Li-ion prisms specify light, even compression or end-plate support to control swelling and preserve performance. Follow the manufacturer’s torque and compression guidelines.

What’s the difference between LFP and NMC prismatic cells?

LFP offers lower energy density but excellent thermal stability and long cycle life. NMC has higher energy density and power capability but typically requires tighter thermal management.

Can I mix different prismatic cells in one pack?

Mixing brands, capacities, chemistries, or ages is not recommended. Mismatches cause imbalance, stress, and safety risks. Use matched cells from the same lot when building series/parallel groups.

Note: Specifications vary by manufacturer and model. Always consult the official datasheet for exact limits and approved operating conditions.
