Panasonic Toughpad Rugged Tablets

Panasonic Toughpad tablets are purpose-built for field teams that need reliable computing in harsh conditions. They pair drop-, dust-, and water-resistant designs with bright, glove-capable touchscreens, long battery life, and enterprise-grade security and connectivity.

When to choose a Toughpad

• Choose if: Your crews work outdoors or in vehicles, need daylight-readable screens, hot-swappable batteries, and options like LTE/5G, GPS, smart card, or barcode scanning.
• Avoid if: You primarily work at a desk, require ultra-light consumer tablets, or don’t need sealed ports and rugged certifications. A standard tablet with a case may be more cost-effective.

What makes it different

• Rugged certifications: MIL-STD-810G/H testing for shock, vibration, and temperature; IP65–IP68 sealing against dust and water (model dependent). Many units survive 4–6 ft drops onto concrete.
• Sunlight-readable touch: High-brightness displays (often 800–1000+ nits) with glove and rain touch modes; optional digitizer pens for precision input.
• Power for full shifts: Standard batteries typically deliver 8–14 hours. Hot-swappable and extended packs can support multi-shift use (16–24 hours with spares).
• Enterprise I/O: Options for RJ-45 Ethernet, serial (RS-232), USB-A/C, microSD, and expansion bays for scanners, smart card, and RFID.
• Security and manageability: TPM, BIOS/UEFI controls, and OS options suited for MDM/EMM (Windows 10/11 Pro, Android Enterprise). Compatible with major management tools.

Quick model fit guide

• 5–6 inch handhelds: One-handed operation for scanning, proof-of-delivery, ticketing, and field service. Pocketable; often IP68 and very drop-resistant.

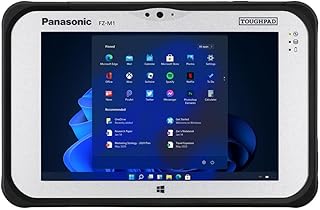

• 7 inch tablets (e.g., FZ-M1 family): Ultra-portable Windows tablets for inspections, aviation, and line-of-business apps needing legacy ports.

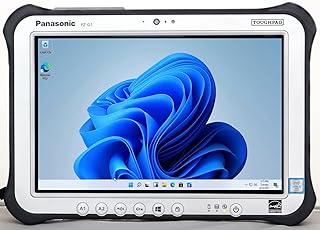

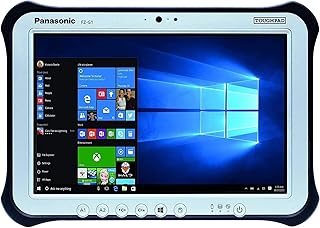

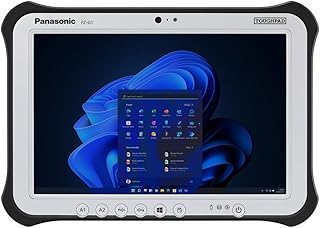

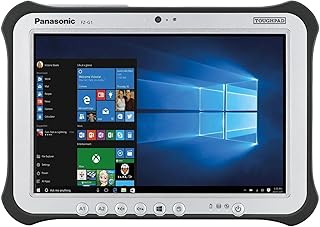

• 10 inch tablets (e.g., FZ-G1 family): The field standard for construction, utilities, and public safety CAD/AVL—bigger screen, wide accessory ecosystem, vehicle docks.

Note: Exact specs vary by generation/“mk” version. Verify CPU, RAM, storage, wireless bands, and accessory compatibility for your chosen SKU.

Battery and runtime planning

• Typical runtime: 8–10 hours on standard batteries with mixed LTE/Wi‑Fi use and 60–70% brightness.
• Extended operation: Hot-swap or extended batteries can push to 16–24 hours when carrying a spare. Swap time is usually under 30 seconds when a bridge battery is present.
• Power tips: Use adaptive brightness, disable radios when idle, and keep spare batteries at 40–60% charge if stored long-term.

Connectivity and expansion

• Wireless: Dual-band Wi‑Fi (ac/ax model dependent), Bluetooth, dedicated GNSS, and optional LTE/5G with carrier certification. Include the needed bands/APNs before purchase.
• Ports: Configuration options may include USB-A/C, HDMI/DisplayPort (via adapter), RJ‑45, and RS‑232. Confirm port blocks and covers for environmental sealing.
• Vehicle/office docking: Broad support from mounting vendors (e.g., Havis, Gamber‑Johnson). Verify dock model against your tablet’s generation and port layout.

Industry fit examples

• Construction and utilities: Use 10 inch models for plans, markups, asset inspection, and GPS-enabled field mapping.
• Public safety: Pair with vehicle docks, dedicated GNSS, and LTE/5G for CAD, eCitation, and situational awareness apps.
• Healthcare and labs: Choose disinfectant-ready housings and smart card support; confirm cleaning agent compatibility.
• Warehousing/retail: Opt for integrated barcode scanners and pistol grips on handheld or 7 inch units.

Pros and cons

• Pros: High reliability in harsh environments, strong accessory ecosystem, hot-swappable batteries, enterprise security and manageability.
• Cons: Heavier and thicker than consumer tablets, higher upfront cost, and model-specific accessories that are not always cross-compatible.

Alternatives to consider

• Getac rugged tablets (e.g., F110, UX10) for comparable 10 inch Windows options.
• Zebra rugged tablets (e.g., ET80/ET85, ET6x) for barcode-centric workflows and Android/Windows choices.
• Dell Latitude Rugged (e.g., 7220) if your fleet standardizes on Dell services and imaging.

Buying checklist

1. Confirm required certifications (IP rating; MIL-STD tests; hazardous location like C1D2/ATEX if needed).
2. Pick OS and CPU/RAM to match your apps (Windows 10/11 Pro or Android Enterprise).
3. Select wireless options (LTE/5G bands, GNSS accuracy) and carriers.
4. Choose I/O modules (Ethernet, serial, smart card, barcode) and verify SKU-level compatibility.
5. Plan power: number of batteries, chargers, and vehicle power adapters.
6. Match docks/mounts to the exact tablet generation and vehicle make/model.

Safety and care notes

• Only submerge or hose down units that are rated for it (e.g., IP66/68) with all port covers sealed.
• Use manufacturer-recommended cleaners (commonly 70% isopropyl alcohol). Avoid strong solvents unless explicitly approved.
• For hazardous locations, purchase the specific certified SKU and keep labels intact for inspections.

Setup timeline

Expect 30–60 minutes per device to enroll in MDM/EMM, apply OS updates, install line-of-business apps, and test docking, scanning, and cellular connectivity.

FAQ

What is the difference between Toughpad and Toughbook?

Toughpad refers to Panasonic’s rugged tablets, while Toughbook typically refers to rugged laptops and 2‑in‑1s. Some tablet lines are now branded under the TOUGHBOOK umbrella, but the rugged design principles are consistent.

Can I use a Toughpad in rain or with gloves?

Yes—most models support glove and rain touch modes. For best results, enable the appropriate touch profile and keep the screen free of heavy droplets.

Are the batteries user-replaceable?

Many Toughpads feature user-replaceable and hot-swappable batteries. Check your exact model; some compact units use internal packs.

Will my existing vehicle dock work with a new model?

Docks are often generation-specific. Verify compatibility by tablet model, “mk” version, and port layout before purchasing.

Do they come with a warranty?

Panasonic typically includes a multi-year limited warranty with optional accidental damage coverage. Confirm terms for your region and SKU.
