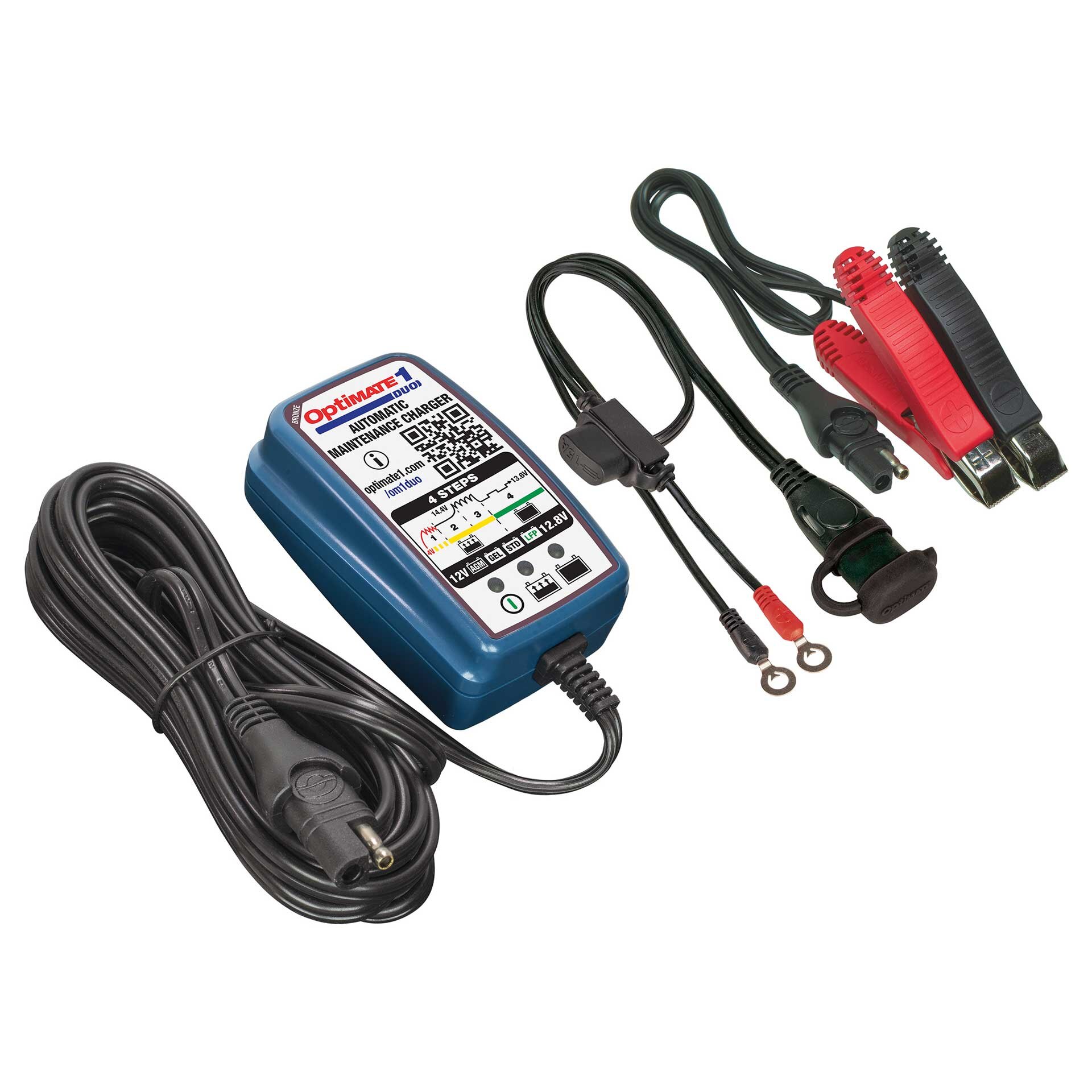

OptiMate 1 Duo

OptiMate 1 Duo — 12V Maintainer for Lead‑Acid and LiFePO4

OptiMate 1 Duo is a weather-resistant, plug-and-play 0.6A smart maintainer that automatically detects whether your 12V battery is lead-acid (AGM, GEL, flooded) or lithium iron phosphate (LiFePO4) and applies the appropriate program. It’s designed for powersports and seasonal equipment where reliable, leave-on maintenance is more important than fast charging.

When to Choose This Model

• Use if: You maintain small 12V batteries (about 2–30Ah) on motorcycles, scooters, ATVs/UTVs, lawn tractors, or generators; you want a “set-and-forget” maintainer for storage; you have a mix of lead-acid and LiFePO4 batteries.
• Consider another charger if: You need to recover a deeply discharged battery or one with a tripped LiFePO4 BMS; you want fast charging for larger batteries; you’re maintaining large automotive batteries (often 60Ah+).

Key Features and Specs

• Dual chemistry: Automatically works with 12V lead-acid (AGM, GEL, flooded) and 12.8/13.2V LiFePO4.
• Charge current: Up to 0.6A (gentle, battery-friendly rate for maintenance and slow charging).
• AC input: 100–240V, 50/60Hz (worldwide use with appropriate plug adapter).
• Maintenance mode: Safe for indefinite connection; monitors voltage and tops up as needed.
• Protection: Reverse-polarity, short-circuit, and spark suppression.
• Form factor: Compact, weather-resistant housing; suitable for garage/shed use.
• Connections: SAE-style quick-connect compatible (use ring terminals or clamps appropriate for your setup).

How It Works

1. Test: Checks battery voltage and identifies chemistry.
2. Bulk charge: Gently charges at up to 0.6A until target voltage is reached.
3. Optimization: Stabilizes voltage; for LiFePO4, maintains the pack at an appropriate level (cell balancing is managed by the battery’s BMS).
4. Maintenance: Monitors and tops up only when needed to prevent overcharge.

Quick Setup

1. Connect the charger lead to the battery (red to +, black to −) or to an installed SAE battery lead.
2. Plug the charger into AC power; indicator lights show charging status.
3. Leave connected for storage; the charger will maintain automatically.

Typical Charging Time (Estimates)

As a 0.6A maintainer, charging is intentionally slow to protect battery health. Approximate times from 50% state of charge (SoC):

• 5–6Ah battery: 4–6 hours
• 8–10Ah battery: 8–10 hours
• 14–20Ah battery: 12–24 hours

From very low SoC, expect 1.5–2× these times. For rapid recovery, choose a higher-amp charger.

Compatibility Notes

• 12V systems only. Not for 6V batteries or lithium chemistries other than LiFePO4.
• For LiFePO4 packs with a BMS that has shut down, a charger with a BMS reset/recovery function may be required.
• If using a vehicle’s accessory or CANbus socket, ensure it is always live; otherwise, connect directly to the battery via ring terminals.
• For large car/truck batteries, this unit is suitable for maintenance only, not fast charging.

Safety and Care

• Unplug from AC before connecting or disconnecting the battery leads.
• Ensure correct polarity; secure connections away from moving parts and heat.
• Use in a dry, ventilated area; avoid immersion or heavy spray.
• For flooded lead-acid batteries, charge in a well-ventilated space.
• Inspect cables and connectors periodically; replace if damaged.

FAQ

Can I leave OptiMate 1 Duo connected all winter?

Yes. It monitors the battery and only tops up as needed, making it safe for long-term storage.

Will it recover a dead or heavily sulfated lead-acid battery?

No. This model is a maintainer and gentle charger. For recovery of severely discharged batteries, use a charger with a dedicated recovery/desulfation mode and higher current.

Is it suitable for car batteries?

It can maintain small 12V car batteries, but it’s not ideal for quickly charging large automotive batteries. Consider a 3–5A charger for faster results.

Does it balance LiFePO4 cells?

It maintains the pack at the correct voltage. Cell balancing is handled by the battery’s built-in BMS.

What do the indicator lights mean?

They typically show charging, maintenance/fully charged, or a fault condition. Refer to the user guide for your unit’s LED legend.
