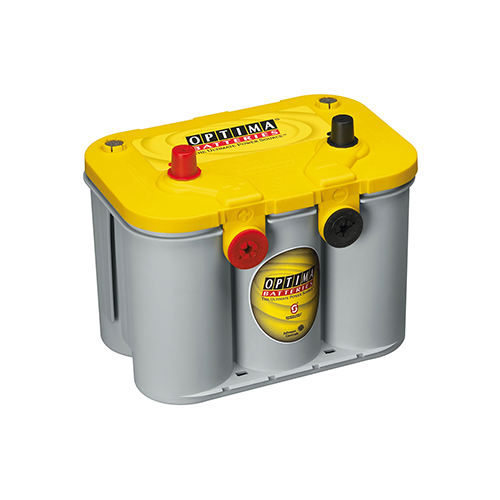

Optima YellowTop Batteries (Deep-Cycle / Dual-Purpose)

Overview

Optima YellowTop is a sealed AGM, dual-purpose battery designed to provide both reliable engine starting and deep-cycle power for accessories. It is well-suited to vehicles with winches, aftermarket lighting, inverters, hydraulic pumps, plows, or high-draw audio systems where repeated discharge and recharge are expected.

When to choose YellowTop

• You run power-hungry accessories (winch, 300–1500 W inverter, auxiliary lighting, air compressors, or 1000 W+ audio).
• Your vehicle sees frequent short trips or idle time that strain the charging system.
• You store the vehicle for weeks or months and need low self-discharge and reliable starting.
• You want one battery that can both start the engine and handle moderate deep-cycling.

Consider alternatives if

• Your vehicle is stock with minimal accessories: a dedicated starting battery may be more cost-effective.
• You need a large, dedicated house bank for extended off-grid use: consider a true deep-cycle AGM or LiFePO4 system (with compatible charging and a battery management system).
• Marine applications requiring specific terminals/hold-downs: check marine-rated options.

Key advantages and trade-offs

• Dual-purpose convenience: cranking and deep-cycle in one battery.
• Vibration and spill resistance: sealed AGM construction for off-road and harsh environments.
• Low maintenance: no watering; low self-discharge supports seasonal storage.
• Trade-offs: higher cost than flooded batteries; heavier than lithium; requires AGM-compatible charging. Flat-plate AGMs of the same group size may offer higher Ah ratings than spiral-cell designs.

Sizing and fitment

Select the correct battery using your vehicle’s manual or an application guide. Common YellowTop group sizes include D34/78, D34, D35, D27F, D31, D75/25, and DS46B24R (application-specific). Verify before purchase.

Runtime and power planning

Reserve Capacity (RC) is the number of minutes a battery can deliver 25 A at 80°F until it reaches 10.5 V. A rating of 120 minutes means roughly 25 A for 2 hours under lab conditions. Real-world runtime varies with load, temperature, and battery age.

Quick planning example

• If your YellowTop is labeled 55 Ah and you plan a 5 A load (e.g., LED lights and a fridge), staying near 50% depth of discharge for longevity: usable Ah ≈ 27.5. Estimated runtime ≈ 27.5 Ah ÷ 5 A ≈ 5.5 hours.
• Winching is a high, intermittent load (100–400+ A). Use the engine at fast idle while winching, pause between pulls, and allow the alternator and battery to recover.

Charging and maintenance

• Use an AGM-compatible smart charger. Typical setpoints: bulk/absorption 14.4–14.7 V; float 13.2–13.8 V (temperature-compensated if available).
• After deep cycling, fully recharge as soon as practical. Alternators are not ideal for complete recovery from deep discharge—top off with a charger.
• Recovery: if the battery is deeply discharged, some chargers have an AGM/repair mode. Follow the charger’s instructions.
• Time estimate: restoring ~50% of a 55 Ah battery with a 10 A charger typically takes ~3–5 hours to reach ~80% plus additional time to fully top off.

Installation and safety

• Disconnect negative (–) first, reconnect last. Wear eye protection; avoid sparks.
• Mount securely using the correct hold-down. Sealed AGM allows flexible mounting positions (avoid fully inverted).
• In-cabin or trunk installs are common for sealed AGM. Follow any OEM venting requirements and secure the battery to prevent movement.
• Do not mix new and old batteries in parallel. If running dual batteries, use an isolator or DC-DC charger.

Compatibility notes

• Works in many vehicles specifying AGM or where electrical demand exceeds stock capability. Always confirm group size, terminal layout, and electrical specs for your application.
• Start-stop systems often require AGM. Verify OE spec and charging profile.
