Nitecore Batteries and Chargers: How to Choose, Use, and Get More Runtime

Nitecore offers rechargeable lithium-ion cells, battery packs, and smart chargers designed for flashlights, headlamps, and other high-drain devices. Use the guidance below to pick the right cell size, discharge rating, and charger, and to keep your power system safe and reliable.

Product Range at a Glance

Rechargeable Li-ion Cells

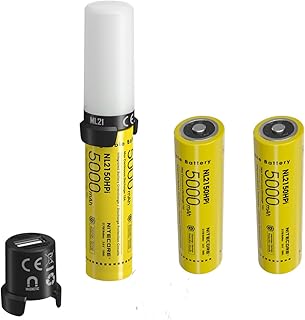

• Common sizes: 14500 (AA-sized), RCR123A/16340, 18650, and 21700.
• Typical capacities: 14500 ≈ 700–1000 mAh; RCR123A ≈ 650–800 mAh; 18650 ≈ 2600–3600 mAh; 21700 ≈ 4000–5000 mAh.

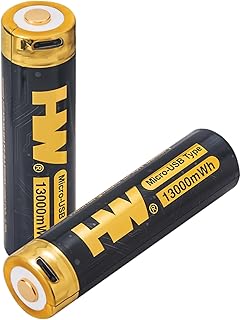

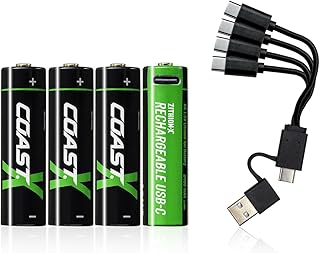

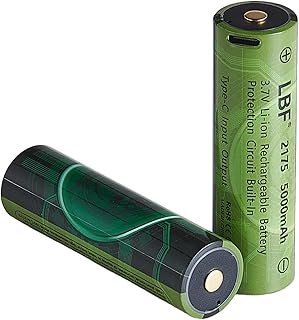

• Options: protected cells for general use, high-discharge (IMR/Li-Mn) for turbo modes, and USB-rechargeable cells with built-in micro-USB or USB-C.

Proprietary Flashlight Batteries

Some Nitecore flashlights require customized cells (e.g., special positive terminals or added length). Always check your light’s manual or product page for exact battery compatibility before purchasing standard cells.

Battery Packs

Sealed Li-ion packs for headlamps and lighting tools prioritize long runtime and durability, often with integrated protection and convenient charging ports.

Smart Chargers

• Multi-chemistry support on many models (Li-ion, NiMH/NiCd; some models also support LiFePO4).
• Independent bays, automatic chemistry/voltage detection, charge rate selection, and battery health readouts on analyzer models.
• Portable options with USB input (ideal for travel), and desktop chargers with higher charge currents for faster turnaround.

Choosing the Right Nitecore Cell

• Maximize runtime: Choose higher-capacity cells (e.g., 21700 over 18650) if your device supports them.
• Handle high turbo output: Pick high-discharge (IMR) variants. Look for higher continuous current ratings.
• General everyday use: Use protected cells for added overcharge/over-discharge/short-circuit protection.

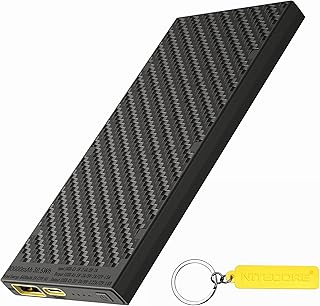

• Travel convenience: USB-rechargeable cells remove the need for a separate charger. Useful for field charging from power banks.

Compatibility notes: Button-top vs flat-top and overall length vary by model, especially with protected and USB-rechargeable cells. Some lights need button-top cells; others accept flat-top. Check device specifications.

Charger Selection Guide

• Number of bays: Match to your typical charging volume (e.g., 2-bay for occasional use, 4–8 bay for kits and teams).
• Chemistry support: If you charge AA/AAA (NiMH) and Li-ion, choose a multi-chemistry model.
• Charge speed: Many cells do best around 0.5C. Example: 3000 mAh Li-ion → ~1.5 A. For small cells (14500/RCR123A), 0.25–0.5 A is gentler.
• Power input: USB-C/USB for travel; AC-powered desktop for faster charging and analyzer features (internal resistance, capacity tests).

Quick Runtime Estimates

Estimate runtime using: runtime (hours) ≈ capacity (mAh) ÷ draw (mA). Real-world results vary with driver efficiency and temperature.

• Example 1: 18650 (3000 mAh) at ~3 A draw (high brightness) → ~1 hour.
• Example 2: 18650 (3000 mAh) at ~0.8 A draw (medium) → ~3.5–4 hours.
• Example 3: 21700 (5000 mAh) at ~1 A draw → ~5 hours.

Typical Specs by Size (Model-Dependent)

Size	Typical capacity	Common discharge range	Notes
14500	700–1000 mAh	3–7 A	Great for compact lights; charge gently (≤0.5 A).
RCR123A / 16340	650–800 mAh	2–5 A	Short, wide cell; check fit in multi-cell lights.

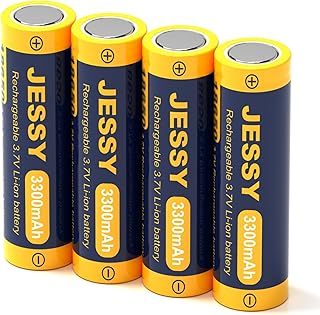

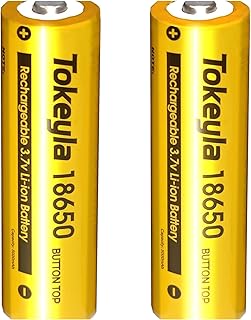

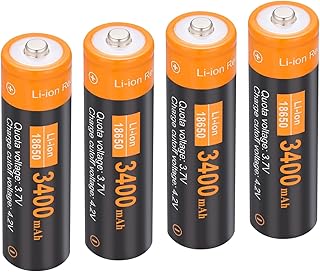

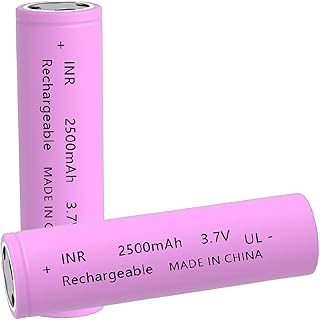

18650	2600–3600 mAh	8–15 A	Most common; wide device support.

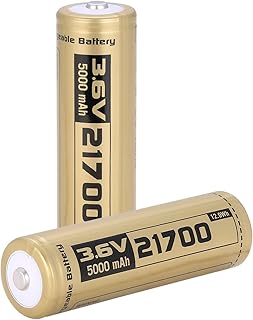

21700	4000–5000 mAh	10–20 A	Longer runtime; verify tube length/diameter.

Values above are typical ranges for modern cells; always follow the specific rating printed on your battery and device.

Safety and Care

• Charge with a compatible smart charger; avoid unregulated or “dumb” chargers.
• Store long-term at ~40–60% charge (≈3.6–3.8 V) in a cool, dry place.
• Use protective cases; never carry loose cells with metal objects.
• Do not mix old and new cells or different brands/capacities in the same device, especially in multi-cell lights.
• Retire cells that are damaged, swollen, or show sharply reduced runtime.

When to Consider Alternatives

• Emergency kits or long storage: Primary lithium (CR123A) avoids self-discharge and is safer for unattended storage if your device supports it.
• Cold weather reliability: Primary lithium often performs better below freezing than most Li-ion rechargeables.
• Enhanced safety chemistry: If your device and charger support LiFePO4, it offers a lower nominal voltage and robust safety profile for specific use cases.

FAQ

Are Nitecore batteries compatible with non-Nitecore chargers?

Yes, if the charger supports the battery’s chemistry and size. For best results, use a quality smart charger and follow the battery’s labeled charge rate.

How do I know if I need a button-top or flat-top cell?

Check your device manual. Many flashlights require button-top cells for reliable contact; some accept flat-top. USB-rechargeable and protected cells are often longer—verify fit.

What charge current should I select?

A safe rule of thumb is ~0.5C (capacity ÷ 2). Examples: 3000 mAh → ~1.5 A; 1000 mAh → ~0.5 A. Lower currents are gentler and can extend cycle life.

Do Nitecore chargers work with AA/AAA NiMH?

Many models do, but confirm on the product page. If supported, the charger will auto-detect NiMH and set an appropriate charge profile.

Can I use standard 18650/21700 cells in a light that shipped with a proprietary battery?

Only if the light explicitly lists standard cells as compatible. Some models require special terminals or extra length and will not function with standard cells.
