Mastervolt MasterBus: Centralized Setup, Monitoring, and Automation

MasterBus connects Mastervolt components on a single, daisy-chained network so you can configure, monitor, and automate your power system from one place. It reduces point-to-point wiring, shortens commissioning time, and makes future upgrades straightforward.

What MasterBus Does

• Unified control: Name devices, set charge limits, temperature thresholds, and current caps from one interface.
• Alarm management: View clear-text alarms with timestamps and acknowledge them centrally.
• Data visibility: See state of charge (SOC), voltages, currents, and temperatures across the system.
• Automation rules: Create simple rules for shore current limiting, quiet hours, load shedding, and generator autostart/stop.
• Scalable: Add compatible chargers, inverters, or solar controllers; new devices appear ready for configuration.
• Remote options: With the appropriate interface modules and panels, extend data and control to helm displays or apps.

When to Choose It

• Most core components are Mastervolt and you want a cohesive, crew-friendly system.
• You need coordinated charging from multiple sources (shore, alternator, solar) with clear limits.
• Generator autostart and quiet hours are priorities for comfort and fuel management.
• You plan future expansions and want configuration to stay simple.

When It May Not Fit

• You require open, vendor-agnostic control of every device; MasterBus focuses on Mastervolt equipment.
• Your system is extremely simple (e.g., a single charger and battery) where networked control adds little value.
• You expect full control of third-party hardware without dedicated interface or I/O modules.

Common Automations

• Shore current limit: Cap total draw to avoid tripping pedestals while maintaining battery charging.
• Quiet hours: Disable or reduce non-essential loads (e.g., water heater) overnight; re-enable at a set time.
• Low-SOC load shedding: Automatically switch off non-critical circuits below a chosen SOC; restore when recovered.
• Generator autostart: Start on low SOC or high AC demand; stop at target SOC or after a quiet-hours window.
• Temperature-based charge limits: Reduce charge current when battery or inverter temperatures rise.

Installation and Commissioning

1. Plan the topology: Sketch device order and cable runs with service loops for maintenance.

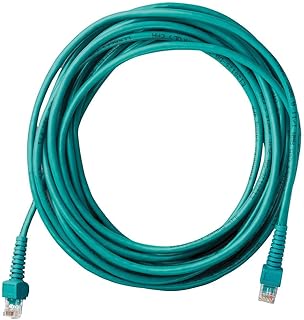

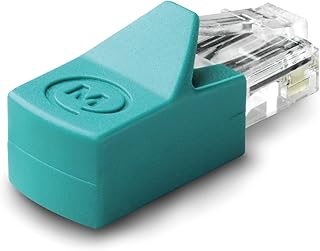

2. Run the network cable: Protect from heat, abrasion, and moisture; maintain bend radius and strain relief.
3. Label everything: Tag both ends of each segment and keep a simple diagram with the vessel/vehicle documents.
4. Power up and discover: Bring devices online; confirm each appears with the correct name and role.
5. Update firmware: Align device versions before setting rules to ensure consistent features.
6. Set limits and rules: Configure charge currents, voltage limits, shore caps, quiet hours, and autostart conditions.
7. Test fail-safes: Simulate low SOC, shore loss, or high load to verify alarms and actions behave as expected.
8. Document and back up: Save/export the configuration if supported and record key thresholds for crew handover.

Time guide: Small systems (3–5 devices): 60–90 minutes to name devices, set limits, and test rules. Larger systems (6–12+ devices): 2–4 hours including firmware updates and documentation.

Integration and Expansion

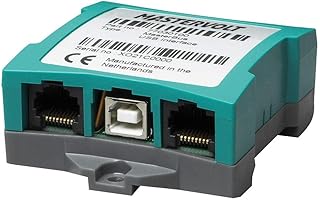

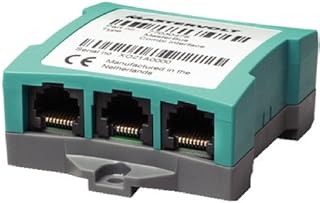

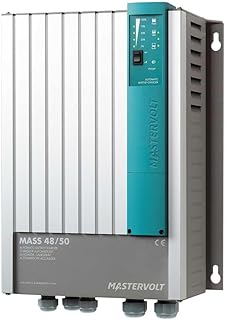

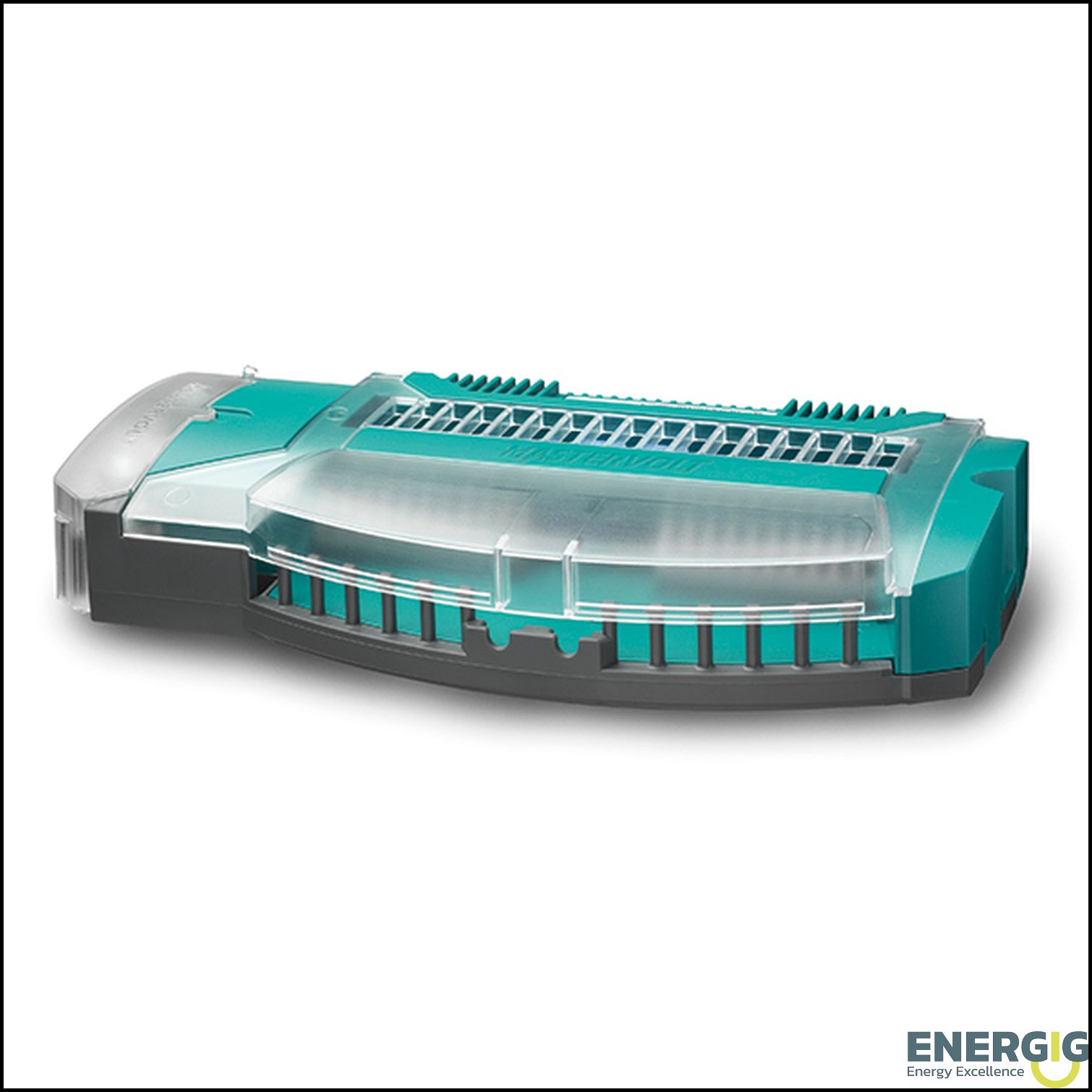

MasterBus is the dedicated energy-control network within the Mastervolt ecosystem. With appropriate interface modules, you can share selected data points to higher-level displays or other onboard backbones. Expect essential telemetry (e.g., SOC, voltage, current, device states) to be available for viewing; advanced configuration typically remains within MasterBus.

Troubleshooting

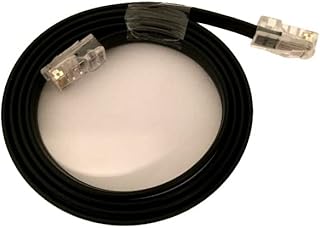

• Device not discovered: Verify device power, network cabling, and that the MasterBus port is enabled. Try a known-good short jumper to isolate cabling issues.
• Inaccurate SOC: Calibrate the battery monitor and confirm correct battery capacity and chemistry settings.
• Inverter trips under load: Review DC voltage sag, surge history, and shore current limits; adjust limits or staging of large loads.
• Repeated alarms: Check rule conflicts (e.g., quiet hours vs. autostart), confirm firmware alignment, and review recent event logs.

Pros and Limitations

Pros

• Single network for configuration, alarms, and automation.
• Faster commissioning and clearer crew training.
• Easy incremental upgrades—new devices appear in one menu.

Limitations

• Best results with Mastervolt devices; third-party control may be limited.
• Relies on a healthy network; plan mechanical protection and labeling.
• Advanced features depend on device firmware and supported modules.

Safety Notes

• MasterBus coordinates control; it does not replace proper overcurrent protection or safe wiring practices.
• Test generator autostart with supervision and adequate ventilation; confirm shutdown conditions.
• Use conservative limits for battery temperature and charge current to protect battery life.
• Document manual overrides so crew can operate safely if the network is offline.

FAQ

• Can MasterBus control non-Mastervolt devices? Basic on/off or signaling may be possible via I/O or switching modules. Deep configuration usually requires the device’s native interface.
• Do I need internet for MasterBus? No. Local panels provide control. Remote access, if desired, requires the appropriate gateway and connectivity.
• Will it work in a star topology? MasterBus is typically daisy-chained. Follow Mastervolt’s current installation guidance for supported layouts and cable limits.
• What happens if the network goes down? Most devices continue operating with their last-known settings, but centralized monitoring and automation rules may pause until connectivity is restored.
• Can I retrofit older equipment? Devices with a MasterBus port integrate directly. Older or non-MasterBus gear may need interface modules or replacement to gain full functionality.
