Mastervolt: Integrated Marine and Mobile Power Systems

Mastervolt builds coordinated AC/DC systems—batteries, inverters, chargers, solar controllers, DC-DC converters, alternator regulators, and displays—that share data and controls over the MasterBus network. The result is predictable power, faster charging, and a single point of configuration and monitoring for boats, RVs, and specialty vehicles.

What’s in the Mastervolt Ecosystem

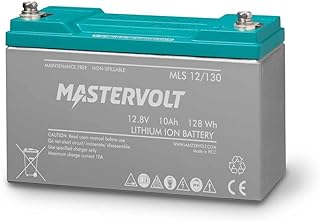

• Batteries: LiFePO4 for high usable capacity and rapid charging; AGM/gel for low-maintenance durability.

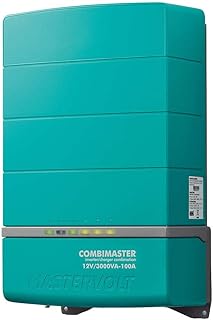

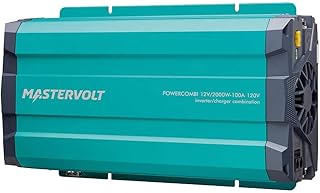

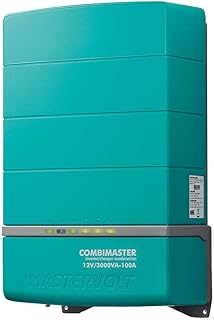

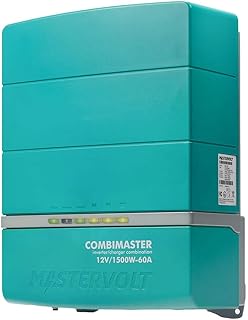

• Inverters & inverter/chargers: Pure sine wave output with strong surge performance for compressors, tools, and electronics.

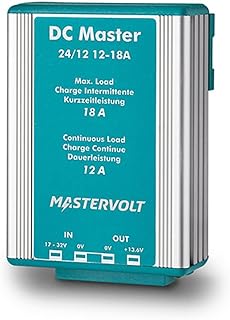

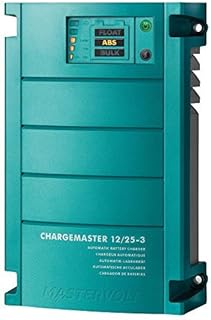

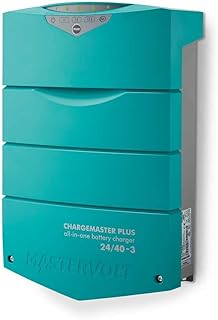

• Charging sources: Multi-stage AC chargers, MPPT solar controllers, alternator regulators, and DC-DC chargers that coordinate by chemistry and limits.
• Monitoring & control: MasterBus-enabled panels and gateways for setup, alarms, data logging, and remote visibility.
• Distribution & protection: Appropriately rated fusing, breakers, and busbars for 12/24/48V architectures.

When to Choose Mastervolt

• Use if: You want tightly integrated components with one interface, need reliable pure sine AC for sensitive gear, or require coordinated multi-source charging (shore, solar, alternator, generator).
• Consider alternatives if: You prefer a mixed-brand, open-CAN approach or must integrate devices without available gateways. Mixing brands can work but may limit monitoring or automation unless a compatible interface is used.

Right-Sizing Your System

1. Estimate energy use: List each load (W or A), multiply by hours/day to get Wh or Ah/day. Add a 20–30% buffer.
2. Battery capacity: Aim for 1–2 days of typical use. For LiFePO4, assume 80–90% usable capacity; for AGM/gel, plan 50% usable to preserve life.
3. Inverter power: Size for the highest simultaneous AC load plus surge. Example: 1,200 W continuous with motor loads may call for a 2,000 W inverter with 2–3× surge.
4. Charge rate: LiFePO4: target 25–50% of bank Ah (C/4 to C/2). AGM/gel: 10–25% of Ah. Combine sources (shore, solar, alternator) to meet this.
5. Solar: Size panels to offset daily use when possible; MPPT controller must match array voltage/current and system voltage.

Quick Runtime Example

A 12 V 400 Ah LiFePO4 bank (~5.1 kWh; ~4.6 kWh usable) powering a 1,000 W AC load through a 90% efficient inverter yields roughly 4.1 hours of runtime: 4,600 Wh ÷ (1,000 W ÷ 0.9) ≈ 4.1 h.

Installation Essentials

• Cable sizing: Design for ≤3% voltage drop on critical DC circuits and ≤10% on non-critical. Use tinned marine-grade cable.
• Protection: Install a main fuse/breaker close to the battery, size per conductor and device ratings, and observe interrupt ratings (e.g., Class-T for large inverters).
• Thermal & access: Provide ventilation for inverters/chargers; allow service loops and clear access to connections and fuses.
• System bonding & EMI: Follow best practices to minimize interference with radios and navigation electronics.
• Standards: Adhere to manufacturer instructions and applicable codes (e.g., marine/RV electrical standards in your region).

Smart Control with MasterBus

MasterBus links devices for discovery, configuration, and coordinated operation. Typical settings include shore-current limits, battery charge profiles, quiet hours, and automated load shedding. Many systems support generator auto-start based on SOC or voltage and can delay high loads until charging is available.

Use-Case Snapshots

• Coastal cruiser: LiFePO4 house bank, inverter/charger, MPPT solar, and MasterBus panel for quiet anchoring and fast dockside recovery.
• Expedition van: DC-DC alternator charging while driving, rooftop solar at camp, compact inverter for induction cooking and tools.
• Workboat/service vehicle: High-surge inverter for power tools, sealed AGM for vibration tolerance, centralized alarms for crew awareness.

Maintenance & Longevity

• Update device firmware when available and review logs for trends.
• Verify torque on lugs, keep vents clear, and inspect cabling for chafe and corrosion.
• Set lithium charge/float limits per BMS guidance; ensure temperature-compensated charging for AGM/gel and allow periodic full charge to prevent sulfation.

Compatibility Notes

• Networking: MasterBus provides the best experience within the Mastervolt ecosystem. Third-party integration may require specific gateways; verify compatibility before purchase.
• Charging sources: Smart alternators (vehicles) often need DC-DC chargers; externally regulated marine alternators benefit from temperature sensing for battery and alternator.
• AC standards: Check inverter/charger support for 120/230 V and 50/60 Hz as required by your region and generator.

FAQ

Note: High-current DC systems can be hazardous. If in doubt, consult a qualified marine/RV electrician.
