Heine Diagnostic Handles

Heine handles are the power and grip modules that drive Heine otoscope, ophthalmoscope, and ENT heads. They provide secure attachment, stable power delivery, and ergonomic control for consistent exams in clinics, hospitals, and mobile care.

What It Is

A Heine handle houses the power source (rechargeable battery or disposable cells) and the control interface (on/off, brightness). It connects to compatible Heine instrument heads to create a complete diagnostic device.

How to Choose

• Voltage: Match the handle voltage to the instrument head (commonly 2.5 V or 3.5 V). Using the wrong voltage can reduce performance or damage the head.
• Power source:

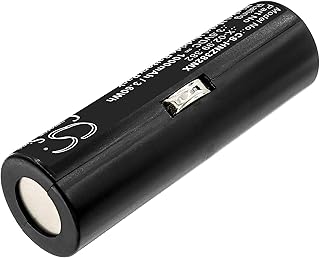

  • Rechargeable Li‑ion: Best for daily, high‑volume clinics; lower long‑term cost and consistent brightness.
  • AA/AAA alkaline or NiMH: Good for backup or low‑volume use; no charger needed, but more frequent battery changes.
• Size and grip: Standard handles offer maximum runtime and grip area; short/slim handles improve portability and suit smaller hands or pocket carry.

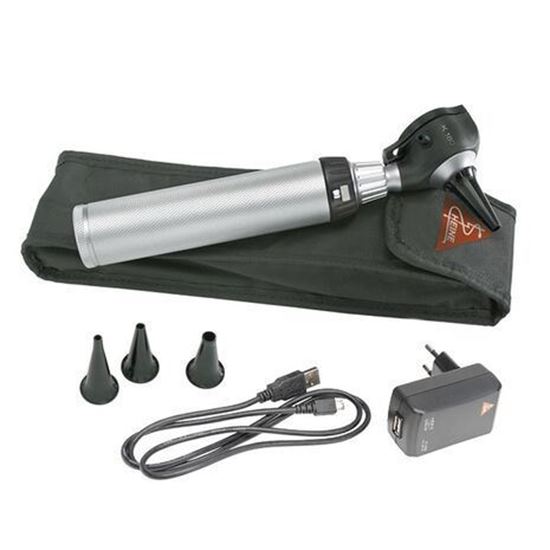

• Charging method: Options include desktop chargers (e.g., NT series) and on‑handle USB charging (model dependent). Pick based on your workspace and number of users.
• Infection control: Prefer smooth, sealed surfaces for fast wipe‑downs; knurled metal grips offer traction but may require more detailed cleaning.

Quick Recommendations

• Choose rechargeable 3.5 V if you use LED heads frequently and need brighter output for ENT or ophthalmic exams.
• Choose 2.5 V AA for infrequent use, outreach, or as a dependable backup without a charger.
• Choose short/slim for mobile care or tight pockets; standard size for longest runtime at the desk.
• Avoid cross‑brand mixing: Heine handles generally are not compatible with other manufacturers’ heads.

Compatibility

• Designed for Heine instrument heads. Cross‑brand compatibility is not guaranteed.
• Match series and voltage as specified by the head manufacturer (for example, 2.5 V vs 3.5 V).
• LED and halogen heads both work when used with the correct voltage and approved handle models.

Runtime and Charging

Actual runtime depends on battery capacity, brightness setting, and the instrument head. As a practical planning range, expect several hours per charge with LED heads at moderate brightness. High‑intensity use shortens runtime. Typical recharge times vary by model and charger; plan 2–4 hours for a full recharge on most desktop chargers. For multi‑room clinics, keep a spare charged handle or battery to avoid downtime.

Use Cases

• Primary care: Routine otoscopy and basic eye exams with a standard rechargeable handle.
• ENT: 3.5 V rechargeable for brighter, sustained illumination during frequent exams.

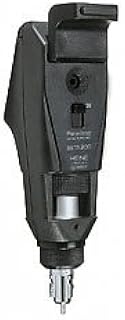

• Ophthalmology/optometry: Stable power for consistent ophthalmoscopy throughout clinic sessions.
• Mobile/home visits: Short or AA‑powered handle for portability and easy field battery swaps.

Care and Maintenance

• Wipe surfaces with an approved hospital disinfectant. Do not immerse or autoclave unless the model’s IFU explicitly allows it.
• Periodically inspect O‑rings, threads, and contacts; replace worn seals to maintain a secure connection and smooth operation.
• Remove batteries for long‑term storage. Keep charging contacts clean and dry.
• If light flickers, re‑seat the head, clean contacts with alcohol, and confirm battery charge and correct voltage.

Troubleshooting

• Flickering or intermittent light: Clean contacts, check for loose head coupling, and verify battery condition.
• Dim output: Increase brightness, fully charge/replace batteries, or confirm the head and handle voltages match.
• Will not charge: Confirm charger compatibility, inspect charging pins/port for debris, and try a known‑good outlet or cable.
• Handle warms during use: Mild warmth can be normal; discontinue use if hot to the touch and check for blocked vents or incorrect battery.

Alternatives and Purchasing Tips

• If you use non‑Heine heads, purchase that brand’s compatible handle to ensure proper fit and voltage.
• For multi‑provider clinics, consider desktop chargers with multiple bays and keep a rotation of charged handles.
• Order spare batteries, O‑rings, and a backup handle to minimize downtime during peak clinic hours.
