Gens ace Batteries 22.2 V (6S)

What It Is

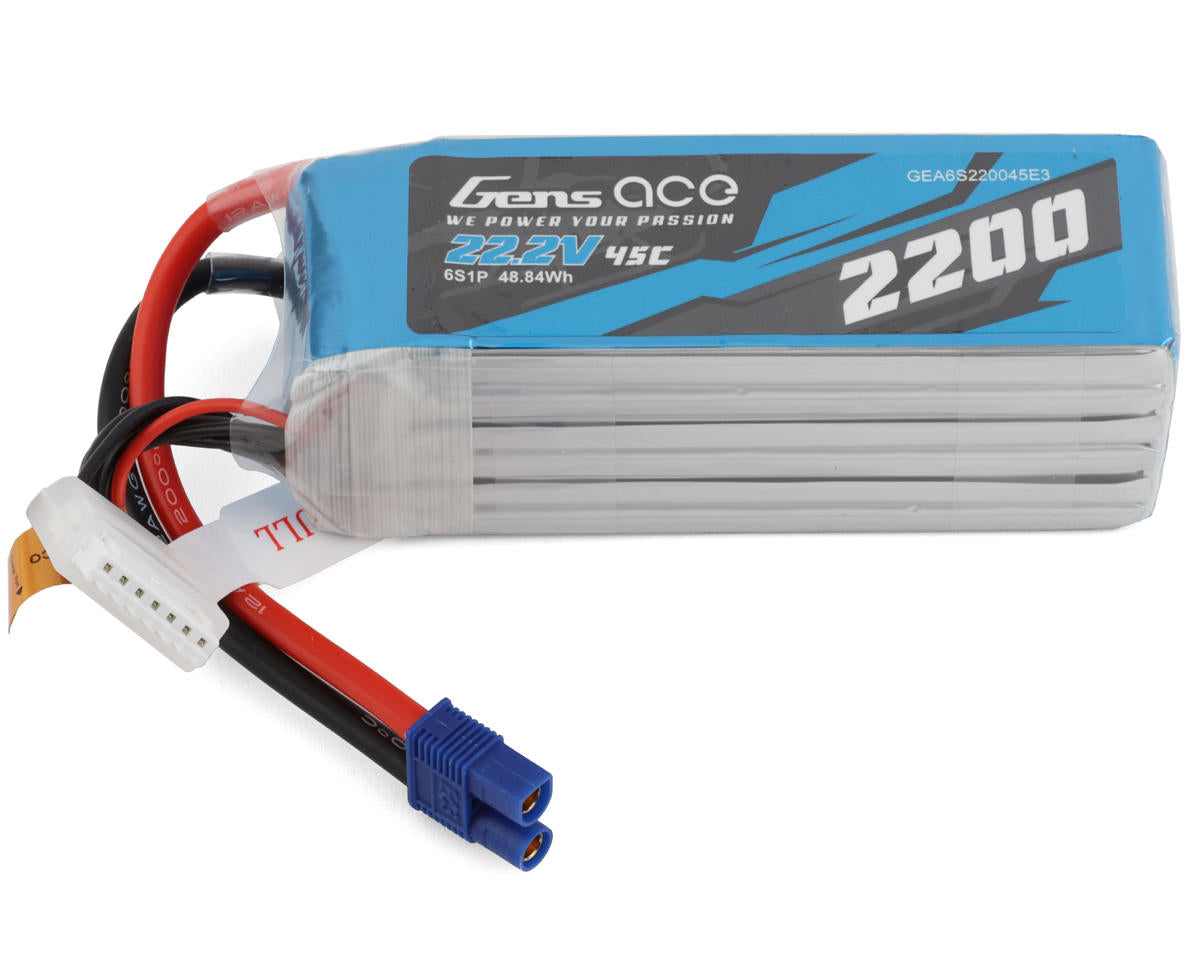

Gens ace 22.2 V (6S) LiPo packs provide high-voltage power for platforms designed to run 6 cells in series. Compared with lower-voltage setups, 6S achieves the same wattage with less current, which cuts resistive losses in the ESC, wiring, and connectors. The result is steadier acceleration, stronger top-end, and fewer thermal issues during long, high-load runs.

When to Choose 6S

• Use if: Your ESC and motor are clearly rated for 6S, you run extended wide-open-throttle (WOT), or you carry heavy payloads and need efficiency headroom.
• Avoid if: Your platform is rated for 2–4S only, space/weight budgets are tight, or you cannot adequately cool the ESC and motor.

Choosing a Gens ace 6S Pack

• Capacity (mAh): Balance runtime vs. weight. Common picks: 2200–3300 mAh (smaller jets), 4000–6000 mAh (1/7 cars, boats), 5000–7000 mAh (larger aircraft/multirotors).
• Discharge rating (C): High-draw setups benefit from higher C ratings to reduce sag. As a simple guide: moderate draw 30–50C, high draw 60–100C.
• Connectors: Choose high-current plugs (EC5/IC5-class, AS150, QS8, etc.) rated for your peak amps. Keep leads short to minimize voltage drop.
• Form factor and weight: Confirm physical fit and center of gravity (CG). Secure packs with padding and straps; avoid hard edges.
• Esc/motor limits: Verify voltage, current, and timing limits before your first full-power run.

Platform Tuning Tips

1/7 Speed Cars

• Start with conservative gearing; log temps after a full-length pass.
• Target pack temps under 60°C (140°F); re-gear if ESC or motor exceed safe limits.

Offshore Boats

• Prop diameter and pitch dominate amp draw—step up gradually and check temps every run.
• Secure packs low and centered to maintain balance in rough water.

EDF Jets

• 6S improves spool-up and verticals; ensure strong airflow over ESC and adequate exit area.
• Mind CG when increasing capacity; a nose-heavy jet may mask sag but hurt handling.

Multirotors

• 6S increases efficiency at a given thrust; retune PID/filters for higher voltage responsiveness.
• Use props that keep current within ESC continuous ratings to preserve flight time and temperatures.

Charging and Care

• Balance charge, attended: Use a reliable LiPo charger on a nonflammable surface.
• Charge rate: 1C is battery-friendly. Only exceed 1C if your specific Gens ace pack label allows it.
• Voltage limits: Full charge is 4.20 V/cell; store at 3.75–3.85 V/cell.
• Temperature: Do not charge a hot pack; allow to cool to ambient first. Keep pack temp under 60°C (140°F) during use.
• Inspection: Retire any pack that is swollen, damaged, or shows rapidly drifting cell balance.

Runtime Estimator

Approximate minutes = (Capacity in mAh × 0.8) ÷ (Average current in mA). The 0.8 factor reserves a safety buffer.

Example: 5000 mAh pack, 40 A average draw → (5000 × 0.8) ÷ 40,000 ≈ 6 minutes.

Troubleshooting

• Early LVC at WOT: Current demand exceeds pack/connector capability. Use a higher C pack, reduce gearing/prop load, or upgrade connectors.
• Hot connectors or leads: Undersized or worn plugs; shorten leads and switch to higher-current connectors.
• ESC thermal throttling: Reduce timing/boost, improve cooling, and lower load (smaller pinion/prop).
• Cells drift during charge: Run a balance cycle. Persistent drift under load indicates rising internal resistance—monitor closely and retire if it worsens.

One 6S vs. Two 3S in Series

• Single 6S: Simpler wiring, fewer failure points, usually lower resistance.
• Two 3S in series: Flexible use across platforms but requires matched brand, age, capacity, and state of charge every time.

Quick Setup Checklist

• Confirm ESC/motor 6S voltage rating and peak current margin.
• Match connector type and ensure solid solder joints.
• Secure the pack with padding; avoid compression against sharp edges.
• Log temps and voltage after the first full-power run; adjust load accordingly.

FAQs

Will 6S make my model twice as fast as 3S?

No. Top speed depends on gearing/prop, aerodynamics/hull drag, and power. 6S provides voltage headroom to reach and sustain higher speeds more efficiently.

What cutoff should I use?

Common starting points are 3.4–3.5 V/cell under load for performance, slightly higher for longevity. Verify your ESC’s method (per-cell vs. total voltage).

What C rating do I need?

Estimate peak current and choose a pack with continuous current capability comfortably above that. Higher C helps reduce voltage sag during long WOT pulls.

Can I mix different 6S packs?

Avoid mixing capacities, ages, or brands in series/parallel. Keep packs paired and balanced to reduce stress and imbalance risks.

Which connector should I use?

Use high-current connectors (e.g., EC5/IC5-class, AS150/QS8) rated above your peak draw. Keep leads short and undamaged.

Bottom Line

For platforms built for high voltage, Gens ace 22.2 V (6S) packs deliver sustained power with less heat and sag. Choose capacity and C rating to match your current draw and space, and follow careful charging and cooling practices for consistent, safe performance.
