Dyson V7 Battery

Dyson V7 Battery: What It Is

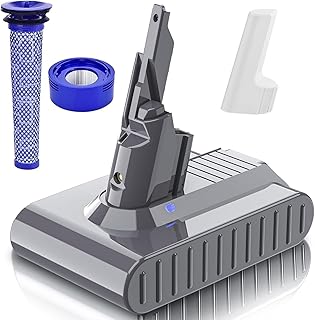

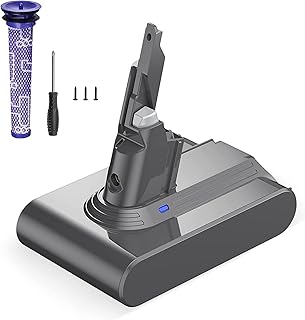

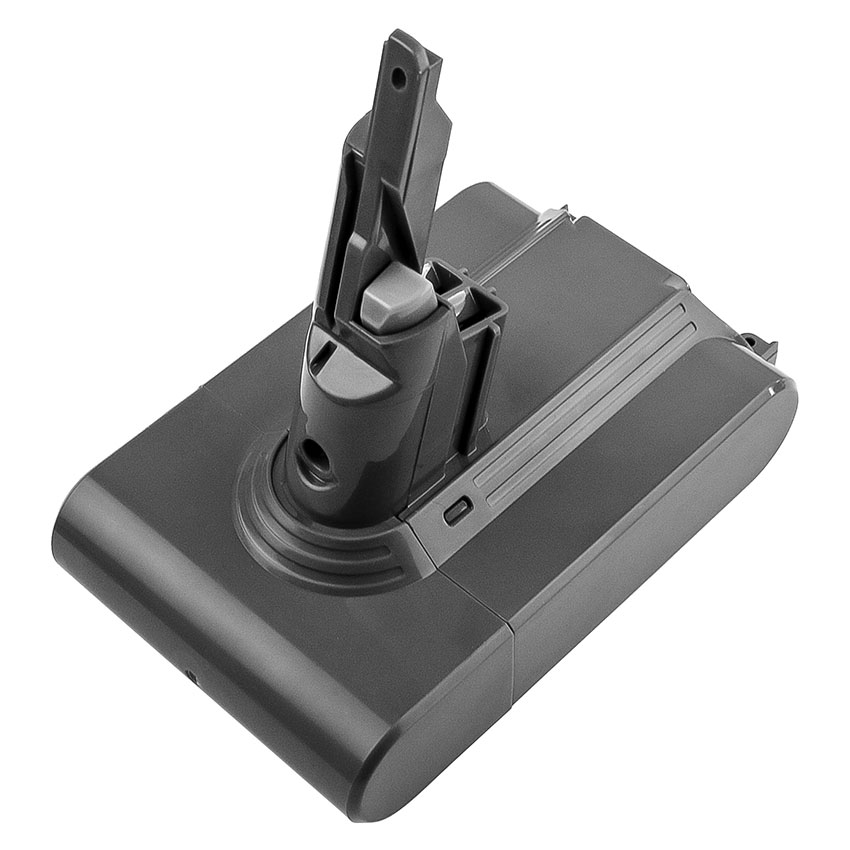

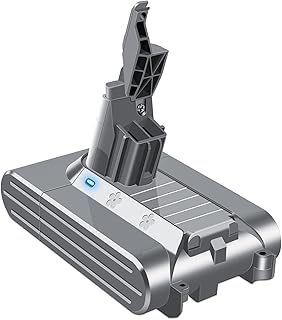

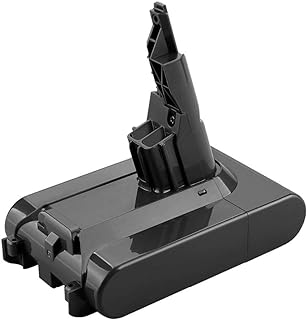

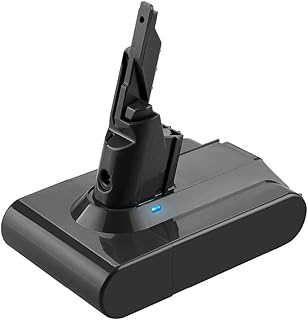

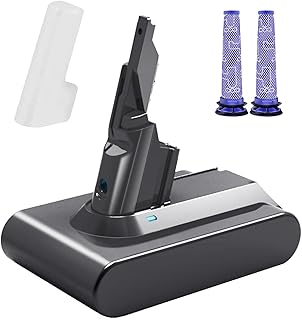

This replacement battery restores runtime and performance for Dyson V7 cordless vacuums. It uses a 21.6V lithium-ion pack with an integrated protection board and installs with screws (not a click-in design). Choose capacity and features based on how and where you clean.

Compatibility

• Fits Dyson V7 models: Motorhead, Animal, Absolute, HEPA, and similar V7 variants.
• Mounting: Screw-in battery (two-screw design on most units).
• Cross-compatibility: Do not assume V6 or V8 batteries fit; use batteries specifically labeled for “Dyson V7.”

Key Specs

When to Replace Your Battery

• Runtime has dropped below 50% of normal even after filter cleaning.
• Vacuum shuts off quickly under load despite clear airflow.
• Charger light indicates a fault after multiple cool-down and retry attempts.
• Pack is swollen, damaged, or shows leakage (stop using immediately).

Choosing a Replacement: OEM vs High-Capacity

OEM-Style (2.2–2.6 Ah)

• Use if you prefer original weight/balance and typical 20–30 minute sessions.
• Pros: Lighter, predictable performance, usually fewer nuisance cutoffs.
• Cons: Shorter runtime than high-capacity packs.

High-Capacity (3.0–5.0 Ah)

• Use if you regularly clean larger areas or multiple rooms in one session.
• Pros: Longer runtime between charges.
• Cons: Slightly heavier; quality varies—choose reputable high-drain cells and a well-tuned BMS to avoid voltage sag and early shutoffs.

Tip: Expect runtime to scale roughly with capacity. Example: if 2.4 Ah yields ~25 minutes in Standard with a motorized head, a quality 3.0 Ah pack may provide ~30–32 minutes under the same conditions.

Expected Runtime

• Hard floors with non-motorized tools: up to ~30 minutes (stock capacity).
• Carpet with motorized head (Standard): ~20–25 minutes.
• Max mode: ~6–7 minutes (use in short bursts for trouble spots).

Installation (5–10 minutes)

1. Power off and remove from the wall dock.
2. Detach the wand and open/slide the bin to access the lower screw.
3. Remove the two screws (one at the handle, one at the base of the battery).
4. Slide the old battery out; seat the new battery fully.
5. Reinstall screws snugly (do not overtighten), then charge fully before first use.

Care and Charging Best Practices

• Let the battery cool 10–20 minutes after heavy use before charging.
• Partial charges are fine; avoid repeatedly running to automatic shutdown.
• Keep filters clean (rinse monthly, air-dry 24 hours). Restricted airflow increases current draw and shortens runtime.
• Store at room temperature; avoid hot garages or direct sun. For long storage, leave at ~40–60% charge and top up monthly.

Troubleshooting

• Rapid shutoff: Check for blockages, clean the filter, and inspect brush bars for hair wrap. If clear and still short, the pack may be worn.
• Flashing indicator while charging: Allow the battery to cool and try again. Persistent errors often indicate battery replacement is needed.
• Won’t charge: Verify outlet and charger, clean dock contacts, and try a direct charger connection if you usually dock.

Safety and Recycling

• Use only the correct V7-compatible charger.
• Charge between ~41°F and 95°F (5–35°C) when possible.
• Do not use or charge a swollen, punctured, or leaking pack—recycle it.
• Recycle lithium-ion batteries at an approved collection point; never place in household trash.
