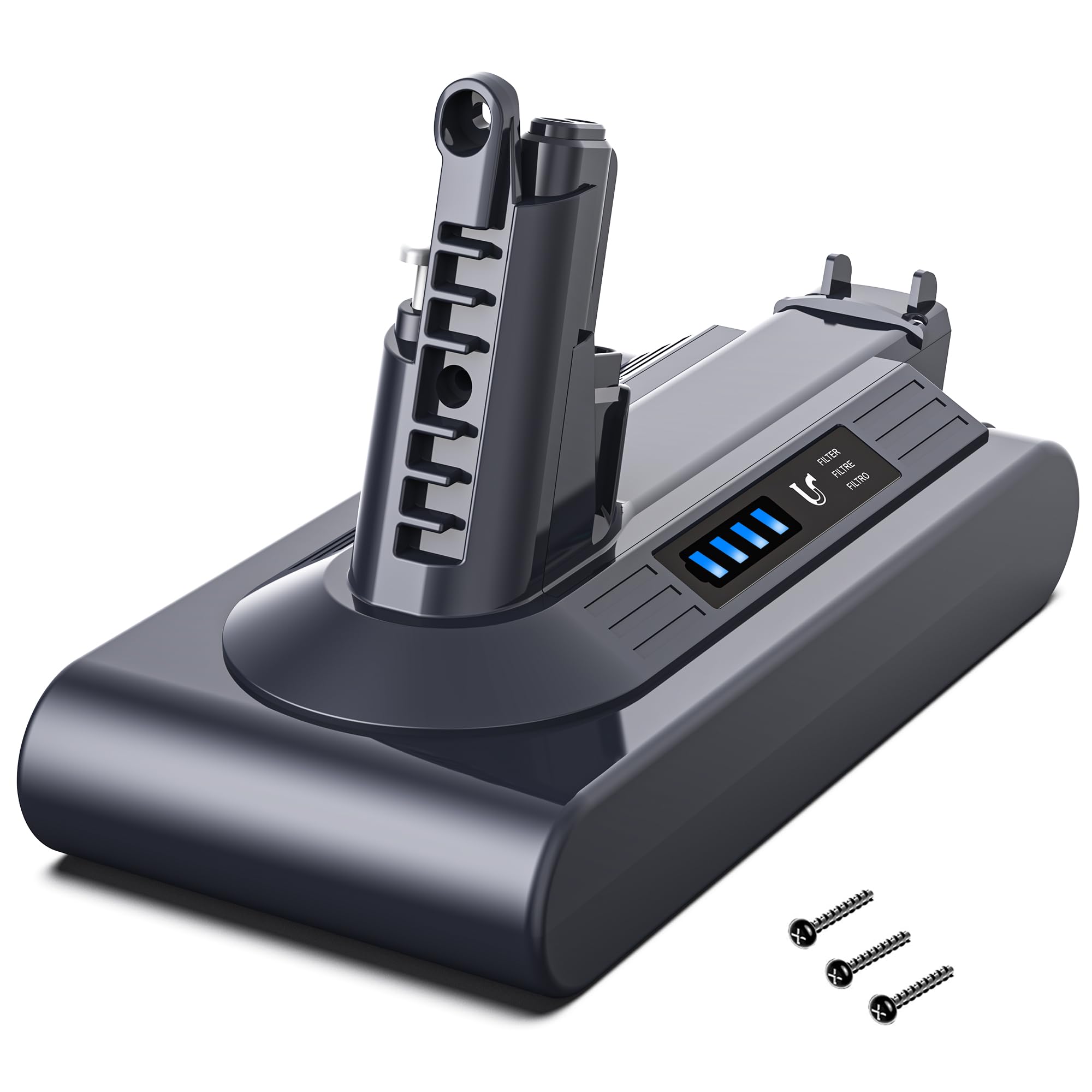

Dyson V10 Battery: Specs, Replacement, and Safe Upgrades

This guide covers the Dyson V10 (SV12) battery: what it fits, how long it lasts, when to replace it, and how to choose between OEM and high‑capacity options. It also includes step‑by‑step replacement and care tips to maximize lifespan and safety.

Compatibility

• Fits Dyson V10 series (SV12): Absolute, Animal, Motorhead variants.
• Not compatible with V7/V8 (lower voltage) or V11/V15 (different, click‑in style).
• Mounting: screw‑in battery (two screws), not a click‑in pack.

Key Specifications

• Voltage: 25.2 V nominal (7‑cell Li‑ion; ~29.4 V fully charged)
• Chemistry: High‑drain lithium‑ion
• Capacity: Typically 2.6–3.0 Ah (OEM); aftermarket options 4.0–5.0 Ah
• Charge time: About 3.5 hours
• Operating temperature: Best between 60–75 °F (16–24 °C)

Runtime Guide (Typical)

Mode	Non‑motorized tools	Motorized floor head
Eco	Up to 60 min	~30–45 min
Medium	~25–35 min	~18–25 min
Boost	~6–8 min	~5–8 min

High‑capacity packs (4.0–5.0 Ah) can extend Eco runtimes by roughly 30–60% depending on cells and tool load.

When to Replace the Battery

• Eco runtime drops below ~15–20 minutes with light tools.
• Sudden shutdowns under load or the vacuum pulses on/off.
• Flashing red fault LEDs during use or charging.
• Visible swelling, overheating, or a burnt smell (stop using immediately).

OEM vs. Aftermarket: Which to Choose?

• OEM (Dyson): Predictable fit and performance; aligns with Dyson’s safety systems. Best if you want like‑new behavior and minimal risk.
• High‑capacity aftermarket (4.0–5.0 Ah): Longer Eco runtime and fewer recharges. Choose reputable brands with protections (over‑current, over‑charge, temperature cutoffs) and documented cell sources. May add weight and can increase motor heat in Boost. Warranty implications vary.

Step‑by‑Step Replacement (5–10 minutes)

1. Turn the vacuum off and unplug the charger.
2. Remove the wand. Optionally slide off the bin to improve access.
3. Use a small Phillips or Torx (T8) driver to remove the two battery screws (one at the handle base, one on the underside).
4. Slide the old battery straight out; avoid pulling on wires.
5. Insert the new pack, align it fully, and reinstall both screws snugly (do not overtighten).
6. Charge to full before first use (about 3.5 hours). Verify the vacuum runs in Eco and Medium without pulsing.

Care and Charging Tips

• Let the battery cool 15–20 minutes after heavy use before charging.
• Partial top‑ups are fine; lithium‑ion has no memory effect.
• Store and charge in a cool, dry place. Avoid hot garages, sunny windows, or damp areas.
• If storing for 1+ months, leave the battery ~40–60% charged and top up monthly.
• Keep filters clean and brush bars free of hair to reduce load and heat.

Safety and Recycling

• Do not crush, puncture, or open the pack. Discontinue use if the case is damaged or the pack is hot to the touch after light use.
• Only use compatible chargers and avoid third‑party fast chargers.
• Recycle lithium‑ion batteries through local e‑waste programs or battery collection points. Do not place in household trash.

When This Battery Makes Sense

• You already own a V10: Direct replacement to restore runtime.
• Large areas or frequent cleans: Consider a high‑capacity pack or a second battery to swap between sessions.
• Allergy or pet homes: Keep runtime strong to maintain filtration performance and avoid overusing Boost.

Alternatives

• If you need tool‑less battery swaps, newer Dyson models use click‑in packs (not cross‑compatible with V10).
• Conversion kits exist but can affect safety, balance, and warranty—use caution.

Short FAQ

How long should a V10 battery last before needing replacement?
Typically 3–5 years with regular home use. Heavy Boost use or hot storage can shorten lifespan.

Why is my V10 shutting off in short bursts?
Pulsing usually indicates a blockage or a weak battery under load. Clear clogs, clean filters, then retest. If pulsing continues, replace the battery.

Can I mix an aftermarket battery with the Dyson charger?
Most quality aftermarket packs are designed for the OEM charger. Confirm compatibility from the battery vendor before use.

Will a higher‑capacity battery increase suction?
No. It extends runtime, but peak suction is set by the motor and electronics.

Are V10 and V8/V11 batteries interchangeable?
No. They use different voltages and mounting systems.
