Dyson Vacuum Batteries: Compatibility, Run Time, and Care

Dyson cordless vacuum batteries are lithium‑ion packs that power your machine’s suction. When matched to the right model and cared for properly, they deliver reliable run time and strong performance for everyday cleaning.

When to Replace the Battery

• Run time has dropped significantly compared to when new (e.g., from ~40–60 minutes to under 10–15 minutes in normal modes).
• The vacuum stops soon after starting or shows flashing red lights indicating a fault.
• The pack will not charge, or the charger light never turns to the “charged” state after several hours.
• Visible damage, swelling, overheating, or a burning smell (stop using immediately).

How to Choose the Right Dyson Battery

Dyson cordless models use either screw‑in or click‑in batteries. Check your model family and battery style before ordering:

Model family	Battery style	Install notes	Typical run time (Eco/Auto to Boost)
V6	Screw‑in	2 screws	~20 min to ~6 min
V7 / V8	Screw‑in	2–3 screws	~30–40 min to ~7 min
V10	Screw‑in	3 screws	~40–60 min to ~8 min
V11 (early)	Screw‑in	3 screws	~40–60 min to ~8 min
V11 (later) / V15	Click‑in	Button release	~40–60 min to ~8 min
Outsize	Click‑in	Button release	~60 min to ~10 min

Tip: If your handle has a small release button and the battery slides out without tools, you have a click‑in style. Otherwise it’s screw‑in. Always match the battery to your exact model number to ensure fit and proper electronics.

Installation

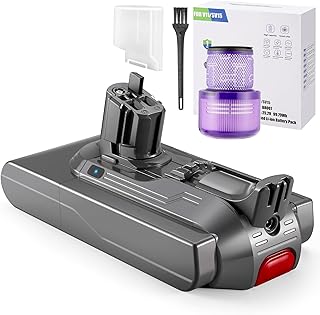

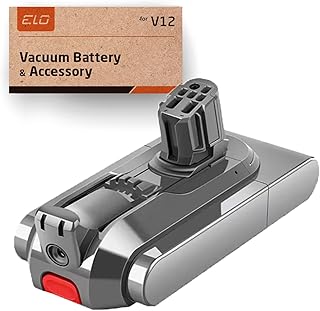

Click‑in batteries

1. Power off and remove attachments.
2. Press the battery release button and slide the old battery out.
3. Align and click the new battery into place until it locks.
4. Fully charge before first use.

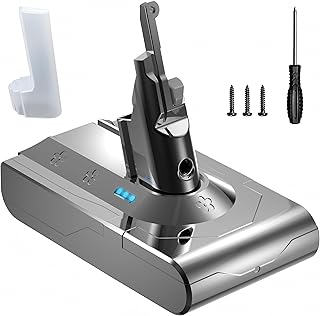

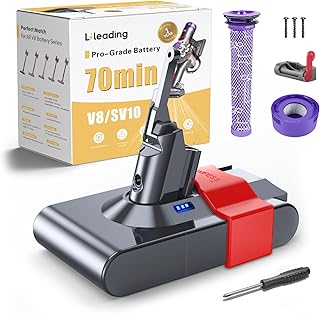

Screw‑in batteries

1. Power off; remove the bin if required for access.
2. Remove the screws (usually 2–3) from the battery casing.
3. Slide out the old battery and fit the new one.
4. Reinstall screws snugly (do not overtighten) and fully charge.

Charging and Storage Best Practices

• Charge time: typically 3.5–4.5 hours from empty, depending on model.
• Temperature matters: charge and use between 41–95°F (5–35°C). If the pack feels hot after use, let it cool 15–30 minutes before charging.
• It’s safe to leave the vacuum on the original Dyson charger/dock; the battery management system stops charging when full.
• For long‑term storage (weeks+), unplug the charger and store the battery at ~40–60% charge in a cool, dry place. Top up every 1–3 months.
• Gauge calibration: every couple of months, run the vacuum down in normal mode until it stops, then fully charge once to help the indicator stay accurate. Avoid repeated deep discharges.

Get More Run Time per Charge

• Use Eco/Auto for everyday debris; reserve Boost/Max for stubborn spots (Boost can cut run time to ~5–10 minutes).
• Keep filters clean and dry; wash and dry fully per your model’s instructions.
• Empty the bin before it reaches max line and clear hair from the brush bar to reduce motor load.
• Use the right tool for the surface (soft roller for hard floors, motorized head for carpets).

Genuine vs Third‑Party Batteries

• Genuine Dyson: designed for exact fit and electronics, preserves warranty compliance, consistent safety features.
• Third‑party: may cost less or offer higher stated capacity, but quality varies. Verify compatibility, safety certifications, and seller support. Avoid packs with unclear specifications.
• If your vacuum is still under warranty, check terms before installing non‑Dyson parts.

Safety and Recycling

• Do not crush, puncture, or expose the pack to water, flames, or metal objects that can short the terminals.
• Stop using immediately if the battery is damaged, swollen, leaking, or excessively hot.
• Recycle used batteries at an authorized e‑waste or battery collection site; do not dispose of in household trash.

Troubleshooting Quick Checks

• No charge or short run time: confirm the charger and outlet work; reseat the battery until it clicks; let a cold or hot battery return to room temperature.
• Flashing red light: indicates a fault—inspect for damage or contact support.
• After storage: charge for at least 3 hours before first use; low‑temperature protection may delay charging.

FAQ

How long should a Dyson battery last before replacement?

Typical life is 2–5 years or about 300–500 full charge cycles, depending on use, temperature, and care.

Will leaving my vacuum on the wall dock damage the battery?

No. Using the original Dyson charger, the battery stops charging when full. For long storage, remove from charge and store partially charged.

Can I use the vacuum while it’s plugged in?

No. Dyson cordless vacuums are not designed to operate while charging.

How do I tell if I have a click‑in or screw‑in battery?

Click‑in batteries release with a button and slide out without tools (common on V15, Outsize, and later V11). Screw‑in batteries are secured by 2–3 screws (common on V7/V8/V10 and early V11).

What if my new battery still has short run time?

Check that you are not in Boost/Max mode, clean filters/brush bar, fully charge the pack, and confirm the battery matches your exact model. If issues persist, contact the seller or Dyson support.
