CATL Batteries: Practical Guide for EV and Energy Storage Buyers

CATL supplies lithium battery cells and integrated systems for passenger and commercial EVs, buses, and stationary storage. This guide focuses on how to select an appropriate CATL chemistry and pack architecture, what to verify in specifications and warranties, and how to commission and operate systems for reliable, cost-effective performance.

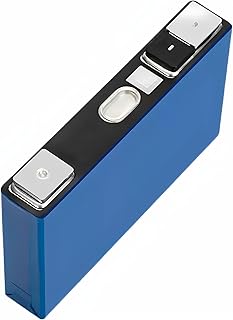

What CATL Offers

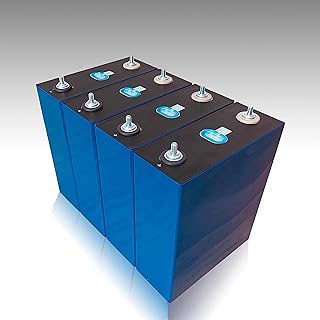

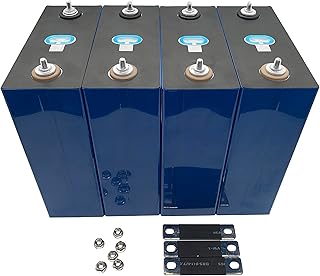

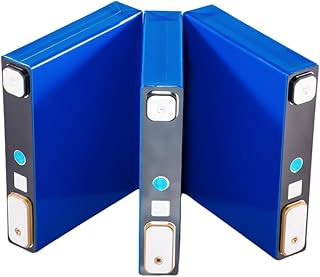

• Lithium chemistries: LFP (lithium iron phosphate) and NMC (nickel manganese cobalt)
• Pack architectures: conventional module-based, cell-to-pack (CTP), and cell-to-chassis (CTC)
• Integrated controls: BMS with telemetry, protections, and communication protocols for EV and stationary systems

Choosing a Chemistry

Choose LFP if you need

• High safety margin and thermal stability
• Long cycle life for daily cycling (e.g., home/commercial storage, depot vehicles)
• Lower cost per delivered kWh and lower supply risk (no cobalt/nickel)

Choose NMC if you need

• Higher energy density for longer range or weight/volume-constrained designs
• High performance at low pack mass for premium or long-range EVs

A common approach is LFP for stationary storage and many mass-market EVs, and NMC for range-sensitive vehicles. Always validate with duty-cycle modeling and datasheet limits.

Pack Architectures: CTP and CTC

CTP removes module-level hardware to boost volumetric utilization. CTC further integrates pack structure into the vehicle chassis for weight savings and stiffness.

Benefits

• Higher usable energy in the same space
• Fewer parts and fast assembly
• Potential cost and weight reduction

Considerations

• Crash loads and validated load paths (especially for CTC)
• Thermal interfaces and even cooling across cells
• Service strategy: fewer subassemblies can mean more planning for module replacement

Use CTP/CTC when maximizing space and mass efficiency is critical, and your program can support tighter manufacturing tolerances and validated repair procedures.

Thermal and Safety Practices

• Maintain small temperature deltas under load (aim for ≤3–5 °C across parallel cells when feasible)
• Liquid cooling for fast charge or high-power duty cycles; verify coolant flow, routing, and leak detection
• Layered safety: cell-level vents, pack isolation, fusing, and BMS limits for charge/discharge
• Cold climates: precondition before fast charging; hot climates: manage cabin/pack thermal loads during peak charging

Typical Ranges to Expect (varies by product)

Confirm exact values in the product datasheet and validation tests for your environment.

Charging Behavior and Longevity

• Use recommended SOC windows for routine use (e.g., 10–90% unless the mission requires otherwise)
• Let the BMS manage charge taper and current limits; avoid repeated high-C fast charging when not needed
• Store idle packs around 30–60% SOC in cool, dry conditions
• Plan firmware updates that include charging curve refinements and diagnostic improvements

Stationary Storage Integration

• Verify inverter compatibility (CAN/Modbus/SunSpec mappings, max DC current, voltage window)
• Use clearly labeled HV cabling, correct torque on busbars, and validated coolant routing
• Commission with string-level checks: IR/impedance, temperature delta at steady load, communication alarms

Quick Runtime Estimate

Usable energy (kWh) × efficiency ÷ load (kW) ≈ runtime (hours). Example: a 20 kWh LFP system at 93% efficiency supporting a 5 kW load yields ~3.7 hours (20 × 0.93 ÷ 5).

What to Check in Specifications

1. Continuous and peak power, not just nominal energy
2. Voltage and current limits across temperature extremes
3. Round-trip efficiency at your expected C-rate and ambient conditions
4. Cycle life test conditions (DoD, temperature, C-rate)
5. Serviceability: module swap procedures, coolant service, required tools
6. Certifications applicable to your market (e.g., UL 1973, UL 9540A, IEC 62619, UN 38.3)

Warranties and Support

• Energy-throughput vs. years: understand the limiting clause
• Permitted temperature/SOC ranges and required maintenance (logs, inspections, firmware)
• Regional parts stock, technician availability, and escalation path
• Data sharing: what telemetry is required to keep coverage in force

Total Cost of Ownership (TCO)

TCO depends on purchase price, installation, efficiency losses, lifespan, and downtime.

Illustrative Example

100 kWh system, 93% RTE, 6,000 cycles, $40,000 battery cost: Delivered energy ≈ 100 × 0.93 × 6,000 = 558,000 kWh. Battery-only cost ≈ $40,000 ÷ 558,000 ≈ $0.072/kWh delivered (exclude BOS, inverter, and O&M for a full picture).

Software, Telemetry, and Controls

• Integrate BMS data into site SCADA/fleet dashboards; set alarms for temperature deltas, IR drift, and imbalance
• Log charge/discharge profiles for warranty and performance analytics
• Coordinate battery limits with inverter/drive controls to avoid nuisance trips

Environmental and Compliance Notes

• LFP reduces reliance on nickel and cobalt; both LFP and NMC benefit from longer service life and growing end-of-life pathways
• Verify conformity with local codes and fire safety requirements (e.g., spacing, ventilation, detection)

Commissioning and Operations Checklist

• Mechanical: verify torque on HV/LV connections; inspect strain reliefs
• Thermal: purge air, confirm flow direction and pump operation; validate temperature deltas under a controlled load
• Electrical: insulation resistance test as permitted; confirm contactor sequencing
• Software: record firmware versions; apply approved updates; test alarms and shutdowns
• Baseline: capture capacity/IR and set a periodic health-check cadence

Use-Case Snapshots

Depot EV Charging (LFP)

Two fast charges per shift with liquid-cooled packs; by enforcing thermal limits and mid-SOC fast charges, a fleet kept capacity fade within modeled curves and avoided unplanned module swaps for 3+ years.

Building Storage (LFP)

Multi-string cabinet system for demand-charge reduction; string telemetry flagged a pump anomaly early, preventing downtime and preserving expected savings.

When to Consider Alternatives

• Extreme cold operation without robust preconditioning
• Applications requiring frequent, deep, high-C cycling beyond datasheet limits
• Designs requiring frequent module-level service access (module-based packs may be easier than CTP/CTC)

Buyer’s Summary

• Pick LFP for safety and cost per cycle; pick NMC for maximum energy density
• Use CTP/CTC to maximize packaging efficiency when your program supports the manufacturing and service model
• Validate thermal performance and charge windows in your climate
• Scrutinize warranty clauses and ensure local parts/service
• Integrate telemetry for proactive maintenance and warranty compliance
