26650 Batteries: How to Choose the Right Cell

26650 batteries are high-capacity cylindrical rechargeables (26 mm diameter, 65 mm length) used in powerful flashlights, solar lighting, instrumentation, robotics, and custom packs. With typical 4000–5500 mAh capacity and 10–30 A continuous discharge ratings, they deliver long runtimes and strong current for demanding devices. This guide helps you select the correct 26650 by fit, chemistry, and performance needs.

Quick Specs at a Glance

Size	26 mm diameter × 65 mm length (protected/button-top variants add length)
Nominal voltage	3.6–3.7 V (Li-ion); 3.2 V (LiFePO4)
Capacity	~4000–5500 mAh (cell-dependent)
Continuous discharge	~10–30 A (check datasheet)
Typical charge voltage	4.2 V (Li-ion); 3.6 V (LiFePO4)

Before You Buy: Fit and Compatibility

• Device accepts 26650? Confirm physical fit; some lights use sleeves/adapters for 18650/21700 but not all accept 26 mm cells.
• Terminal type: Button-top suits single-cell flashlights and devices needing a raised positive nub; flat-top is common for battery packs and devices with spring contacts.
• Protected vs. unprotected: Protected cells include a safety circuit (adds ~2–3 mm length). Choose protected for standalone consumer devices; use unprotected only when a reliable BMS is present.
• Charger fit: Ensure your charger’s bays accommodate 26 mm diameter and the added length of protected/button-top cells.

Choose by Chemistry

• Li-ion (INR/NMC, IMR, ICR) — 3.6–3.7 V nominal
  • Use if: You need maximum energy density and common 4.2 V charging.
  • Pros: Highest capacity and broad device compatibility.
  • Consider: Typical cycle life ~300–500 cycles; observe current and temperature limits.
• LiFePO4 — 3.2 V nominal
  • Use if: Your device is designed for 3.2 V systems or prioritizes long cycle life and thermal stability.
  • Pros: Excellent stability and long cycle life (often 800–2000 cycles).
  • Avoid if: Your device specifically needs 3.6–3.7 V Li-ion; charging voltage and cutoffs differ.

Match Current Draw to Discharge Rating

Check your device’s maximum current draw and select a cell with a continuous discharge rating (CDR) that meets or exceeds it. Avoid relying on “pulse” ratings for continuous use.

• Low–moderate draw (≤5 A): Prioritize capacity for longer runtime.
• Moderate–high draw (6–15 A): Choose balanced cells (high capacity with ≥15 A CDR).
• High draw (≥20 A): Select cells explicitly rated for high current; expect lower capacity.

Estimate Runtime

Approximate runtime (hours) ≈ capacity (Ah) × nominal voltage (V) ÷ device power (W). For current-based devices, hours ≈ capacity (Ah) ÷ current (A).

• Example: A 5000 mAh (5 Ah) cell powering a 3 A LED driver ≈ 5 ÷ 3 ≈ 1.7 hours (real-world results vary 10–20% by efficiency and cutoff).
• At 1 A draw, the same cell provides ≈ 5 hours.

26650 vs. 18650 vs. 21700

• 26650: Highest capacity in a single cylindrical cell that still fits many flashlights; best for maximum runtime and moderate–high current.
• 21700: Often similar discharge with slightly less capacity but slimmer size; widely adopted in newer designs.
• 18650: Most compact and common; ideal when space and weight matter more than runtime.

Charging and Care

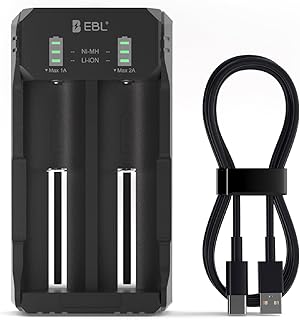

• Use a quality charger with Li-ion or LiFePO4 mode matching your chemistry, independent bays, and automatic cutoff.
• Charge rate: 0.5C is a safe guideline (e.g., 2–2.5 A for a 5000 mAh cell). Do not exceed the manufacturer’s maximum.
• Storage: Store at 40–60% state of charge in a cool, dry place; check and top off every 3–6 months.
• Rotation: For multi-cell devices, keep cells as a matched set (same model, age, and cycle count). Never mix new and old cells.
• End of life: Recycle at an authorized facility; do not discard in trash.

Safety Notes

• Do not short-circuit, crush, or expose to temperatures above manufacturer limits.
• Avoid over-discharge (commonly below ~2.5 V for Li-ion; ~2.0 V for LiFePO4) and overcharge.
• Use protected cells for standalone consumer devices unless the device has robust battery management.
• Carry spares in a protective case—never loose in a pocket or bag with metal objects.

FAQs

Will a 26650 fit my flashlight?

Only if the tube and springs are designed for 26 mm diameter and the cell’s length. Protected and button-top versions can be 2–4 mm longer; check your device’s spec.

Do I need a special charger?

Use a charger that supports the cell’s size and chemistry. Many universal chargers accept 26650 Li-ion (4.2 V). LiFePO4 requires a 3.6 V charge mode.

Protected or unprotected—what should I choose?

Choose protected cells for single-cell consumer devices. Use unprotected only in packs or devices with a reliable BMS and adequate monitoring.

How long will a 26650 last?

Expect roughly 300–500 full cycles for Li-ion and higher for LiFePO4, depending on temperature, charge rate, and depth of discharge.

Can I mix different 26650 cells together?

No. Use identical cells (brand, model, age) in multi-cell devices and keep them as a dedicated set to maintain balance and safety.
