14500 Batteries (AA-size Li‑ion): How to Choose and Use

14500 batteries are rechargeable lithium‑ion cells the same footprint as AA (14 mm diameter, ~50 mm length) but with a higher nominal voltage of 3.6–3.7 V (4.2 V fully charged). They deliver strong output for compatible flashlights and electronics, typically 600–1100 mAh capacity and 2–10 A continuous discharge depending on the cell.

When to Use vs. Avoid

• Use if: Your device or manual explicitly states “14500 compatible,” “3.7 V Li‑ion,” or a voltage range up to 4.2 V.
• Use if: You need higher brightness or performance than AA in a driver designed for Li‑ion.
• Avoid if: The product specifies “AA only,” “alkaline only,” or 1.2–1.5 V input. A 14500 can permanently damage such devices.
• Avoid if: Tight battery compartments can’t accommodate the extra length of protected or button‑top cells.

Key Selection Criteria

• Compatibility: Confirm your device supports 3.7 V cells. Look for markings like “1×14500” or “Li‑ion 4.2 V max.”
• Protection circuit:
  • Protected: Adds over‑charge/over‑discharge/short protection. Safer for general use; length is often 51–53 mm.
  • Unprotected: Standard 49–50 mm; required for some tight fits or high‑drain performance, but needs careful user management.
• Top style:
  • Button‑top: Better contact in many flashlights and devices with recessed positive terminals.

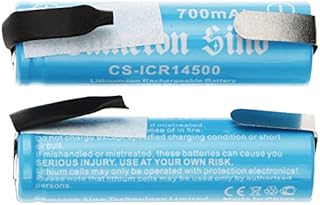

  • Flat‑top: Shorter overall length; used in multi‑cell packs or tight bays.
• Capacity vs. current:
  • Higher capacity (800–1100 mAh) for moderate drain, longer runtime.
  • High‑drain cells (e.g., 7–10 A continuous) for turbo flashlight modes; typically slightly lower capacity.
• Chemistry shorthand:
  • INR/IMR (manganese‑rich blends): Safer behavior and higher current capability.
  • ICR (cobalt‑rich): Higher capacity; usually lower max discharge and often paired with protection circuits.

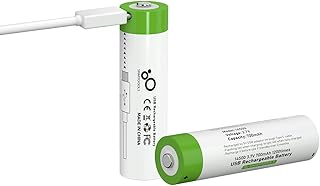

• Integrated charging: Some 14500s include a USB‑C/Micro‑USB port; convenient but longer and heavier.

Typical Specs at a Glance

• Size: 14×50 mm nominal (length varies by protection/top: ~49–53 mm)
• Voltage: 3.6–3.7 V nominal, 4.2 V fully charged
• Capacity: ~600–1100 mAh
• Continuous discharge: ~2–10 A (check datasheet)

Runtime Quick Math

Approximate runtime (hours) = capacity (mAh) ÷ load (mA). Example: a 900 mAh cell at 1,000 mA ≈ 0.9 h; at 100 mA ≈ 9 h. Real‑world results vary with driver efficiency, temperature, and cell age.

Common Use Cases

• High‑output EDC flashlights with 14500 compatibility for brighter turbo modes
• Sensors and small electronics designed for 3.7 V operation
• Photo/video accessories that specify 14500 Li‑ion

Charging and Care

• Use a quality Li‑ion charger with CC/CV to 4.2 V; 0.5–1.0 A is a safe charge rate for most 14500s (consult cell specs).
• Do not use NiMH/alkaline‑only chargers.
• Unplug when full; do not leave charging unattended or on flammable surfaces.
• Storage: Cool, dry place at ~30–60% charge; check and top up every 3–6 months.

Safety Notes

• Do not short‑circuit, puncture, crush, or expose to high heat.
• Do not mix old/new, different brands, or capacities in multi‑cell devices.
• Only use undamaged wraps and insulators; rewrap or replace if torn.
• Transport in a protective case—never loose in a pocket with keys/coins.

How 14500 Compares

Quick Buying Guide

• New to Li‑ion or unsure about fit: pick a protected, button‑top 14500 and verify your device accepts 51–53 mm length.
• For tight compartments or series use in supported gear: choose unprotected flat‑top and follow strict safety practices.
• For high‑drain flashlights: look for INR/IMR cells with ≥5 A continuous rating.
• Want easy charging: consider USB‑rechargeable 14500s; confirm extra length clearance.

FAQ

• Can I use a 14500 in any AA device? No. Only use in devices labeled for 14500/3.7 V. Many AA‑only products will be damaged by the higher voltage.
• Protected vs. unprotected—what’s the difference? Protected cells include a safety circuit to prevent over‑charge, over‑discharge, and short circuits but are longer. Unprotected cells are shorter and may support higher drain, but require careful handling.
• How long do 14500 batteries last? Often 300–500 full cycles under normal use; partial cycles and gentle charging can extend lifespan.
• What charge rate should I use? 0.5–1.0 A is typical for 14500. Check the cell’s datasheet and your charger settings.
• Why does my flashlight flicker or overheat on 14500? The driver may not be designed for 3.7–4.2 V or high current. Stop use and switch to AA/NiMH if the device is not 14500‑rated.
