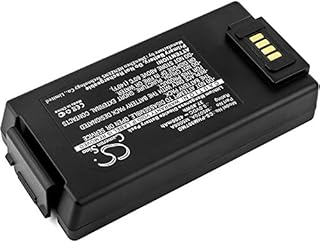

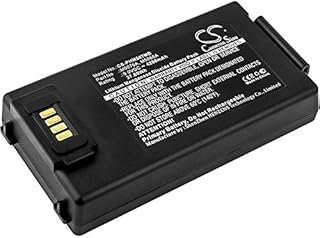

Cameron Sino CS-PHM507MD Replacement Battery

The Cameron Sino CS-PHM507MD is a high-quality replacement battery for compatible medical and diagnostic devices. It’s designed to restore reliable runtime and steady voltage delivery, with protective electronics to help safeguard your equipment.

When to Choose This Battery

• Use if your current pack charges slowly, drains faster than expected, or causes nuisance low-battery alarms.
• Use if you need predictable output for portable monitoring, diagnostics, or calibration workflows.
• Avoid if your device requires an OEM-only battery (some models are firmware-locked). Check your facility policy and device manual.

Compatibility & Fit Check (2 Minutes)

1. Match the code: confirm your original part lists CS-PHM507MD or an explicit cross-reference to it.
2. Verify electricals: compare voltage (V) and connector style to the original label and plug.
3. Check dimensions: ensure the pack size, keying, and latch positions match your old battery.
4. Visual compare: align photos of the new pack with your original for connector orientation and contact placement.

Performance & Runtime Expectations

• Stable output: designed for smooth discharge to reduce unexpected shutdowns and spurious alarms.
• Break-in: new lithium packs typically reach full, consistent capacity after 2–3 charge/discharge cycles.
• Runtime estimate: Runtime (hours) ≈ Battery capacity (mAh) ÷ Device load (mA). Example: a 2600 mAh pack powering a 500 mA load ≈ ~5.2 hours (example only; verify your device’s draw).
• Capacity variance: expected tolerance across batches is normal; allow ±10–15% around rated capacity depending on conditions and device settings.

Installation Steps

1. Power down the device and disconnect external power.
2. Open the battery compartment per the device manual. Observe ESD care—avoid touching contacts.
3. Remove the old pack; note connector orientation or latch positions.
4. Seat the CS-PHM507MD fully; confirm the latch clicks or screws secure the pack without force.
5. Charge to 100% before first use. Keep the device powered on and idle for 10–15 minutes after full charge to let gauges update, if applicable.

Charging & Care

• Top-off charging: frequent partial charges are easier on lithium packs than deep discharges.
• Temperature: charge and store in a cool, ventilated area (ideally 50–77°F / 10–25°C). Avoid heat and direct sunlight.
• Storage: for spares, store at ~40–60% charge; top up every 3–6 months.
• Gauge calibration (optional): every few months, allow the device to run down to a low warning (not below 5–10%), then recharge to 100% uninterrupted to help the fuel gauge learn.

Safety Notes

• Includes protective circuitry (over-charge, over-current, short-circuit). Still avoid puncture, crush, or exposure to liquids.
• Test the device after installation before returning it to service. Do not rely on battery power alone for life-sustaining functions.
• Recycle responsibly via e-waste programs; do not incinerate.

Troubleshooting

• Device shuts down early: reseat the battery, charge fully, and perform one complete charge cycle to help the gauge recalibrate.
• Not recognized or won’t charge: inspect connectors for debris or bent pins; try a different charger bay or power supply known to be good.
• Short runtime vs. OEM: compare the rated capacity to your old pack; check device power settings (screen brightness, wireless radios, measurement modes).

Pros and Considerations

• Pros: predictable output, protective electronics, precise fit, cost-effective alternative to OEM consumables.
• Considerations: some devices may require OEM packs; initial cycles may show slightly reduced capacity until the pack settles.
