Cameron Sino CS-GMP420MD

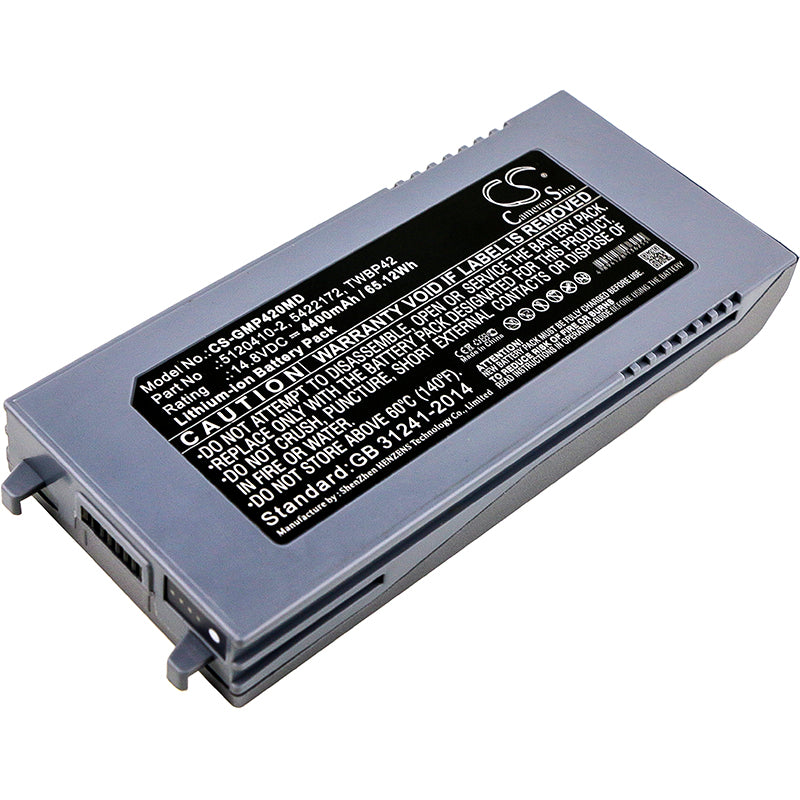

Cameron Sino CS-GMP420MD Replacement Battery

The CS-GMP420MD is a professional-grade replacement battery for medical and measurement instruments that need stable power and predictable runtime. It pairs quality cells with integrated protection circuitry and a precise form factor to help devices boot cleanly, capture accurate readings, and stay operational through busy shifts.

Use this battery if

• Your device or original pack references part number CS-GMP420MD (or an explicit cross-reference in the device manual).
• You need steady voltage for sensitive sensors and data logging.
• You want a reliable, budget-conscious alternative to an OEM battery.

Avoid or verify first if

• Your device enforces OEM-only batteries via firmware or authentication.
• Connector orientation, voltage, or chemistry differs from the original pack.
• The device will be used in extreme temperatures outside the manufacturer’s operating range.

Key features

• Stable output to reduce resets and nuisance alarms.
• Integrated protection against overcharge, over-discharge, overcurrent, and short circuit.
• Precision fit for secure seating and reliable contact under movement.
• Suitable for frequent partial charges common in clinical and field workflows.

Compatibility checklist

• Match the part number: Confirm CS-GMP420MD on your original battery label or device documentation.
• Electrical: Voltage and chemistry must match the original pack. Capacity does not need to be identical, but large changes may alter runtime and charge times.
• Mechanical: Check dimensions, latch style, cable/connector shape, and polarity. Ensure nothing binds and the pack seats fully.
• Policy: Follow your facility’s guidelines for using non-OEM consumables in regulated equipment.

Installation

1. Power down the device and disconnect external power.
2. Observe ESD care; work on a clean, dry surface.
3. Remove the original battery, noting orientation, latch points, and cable routing.
4. Inspect contacts and compartment for debris; clean gently if needed.
5. Insert the CS-GMP420MD, ensure it is fully seated, and secure any latches or screws.
6. Charge the device to 100% before returning it to service.
7. Record the installation date for maintenance tracking.

Charging and care

• Prefer frequent partial charges (roughly 20–80%) over deep discharges.
• Keep batteries cool and ventilated while charging; avoid heat sources.
• For storage longer than 2 weeks, store around 40–60% charge at 50–77°F (10–25°C) and top up every 3 months.
• Rotate spare packs into service monthly to prevent prolonged full or empty storage.
• If the fuel gauge seems off, perform one full charge and normal discharge to help the device recalibrate.

Runtime planning

Estimate runtime with: Runtime (hours) ≈ Battery capacity (Wh) ÷ Device load (W).

• Example (for planning only): If your device draws 4 W and the battery is 22 Wh, expect about 5.5 hours. Actual runtime varies with screen brightness, wireless radios, alarms, and ambient temperature.

Troubleshooting

• Device won’t power on: Re-seat the battery, verify latch engagement, and confirm the correct model/connector. Try AC power to rule out charger issues.
• Inaccurate gauge: Do one uninterrupted full charge, then use normally. Avoid repeated deep cycles as routine practice.
• Excess heat: Light warmth during charging is normal. If the pack becomes hot, stop use, inspect contacts, and allow it to cool. Replace if damage is visible.
• Fast drain: Reduce screen brightness, disable unneeded radios, and confirm background features aren’t active. Compare against a known-good charger.

Safety notes

• Use only with compatible devices and chargers.
• Do not crush, puncture, short-circuit, or expose to liquids.
• Do not sterilize in autoclaves; use wipe-down methods approved for batteries.
• Recycle according to local e-waste regulations; do not incinerate.

FAQ

• How do I confirm this is the right battery? Match CS-GMP420MD to the original part number and verify voltage, connector type/polarity, and physical fit against your device’s documentation.
• How long does a full charge take? Typically 2–6 hours depending on the device’s charger and the battery’s capacity.
• Will using this battery affect my device warranty? Policies vary by manufacturer and facility. Check your device warranty terms and local procedures.
• Can I operate the device while charging? If the device supports it, yes. Follow the device manual for safe operation during charging.
• How should I dispose of old batteries? Use approved battery recycling programs. Never discard in regular trash or incinerate.
