Bluetti Solar Panels: Portable and Rigid Options for Reliable Off‑Grid Charging

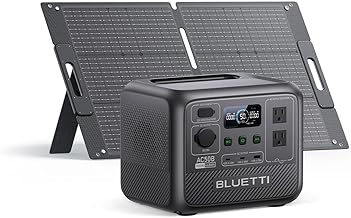

Bluetti solar panels use high-efficiency monocrystalline cells and MC4 connectors to feed Bluetti power stations or any compatible MPPT charge controller. Pick portable foldables for camping and travel, or rigid glass modules for semi-permanent and permanent setups.

When to Choose Foldable vs. Rigid

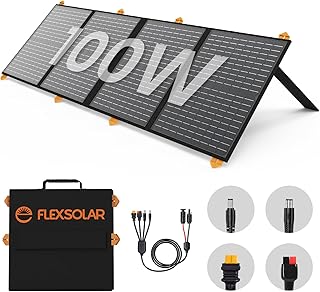

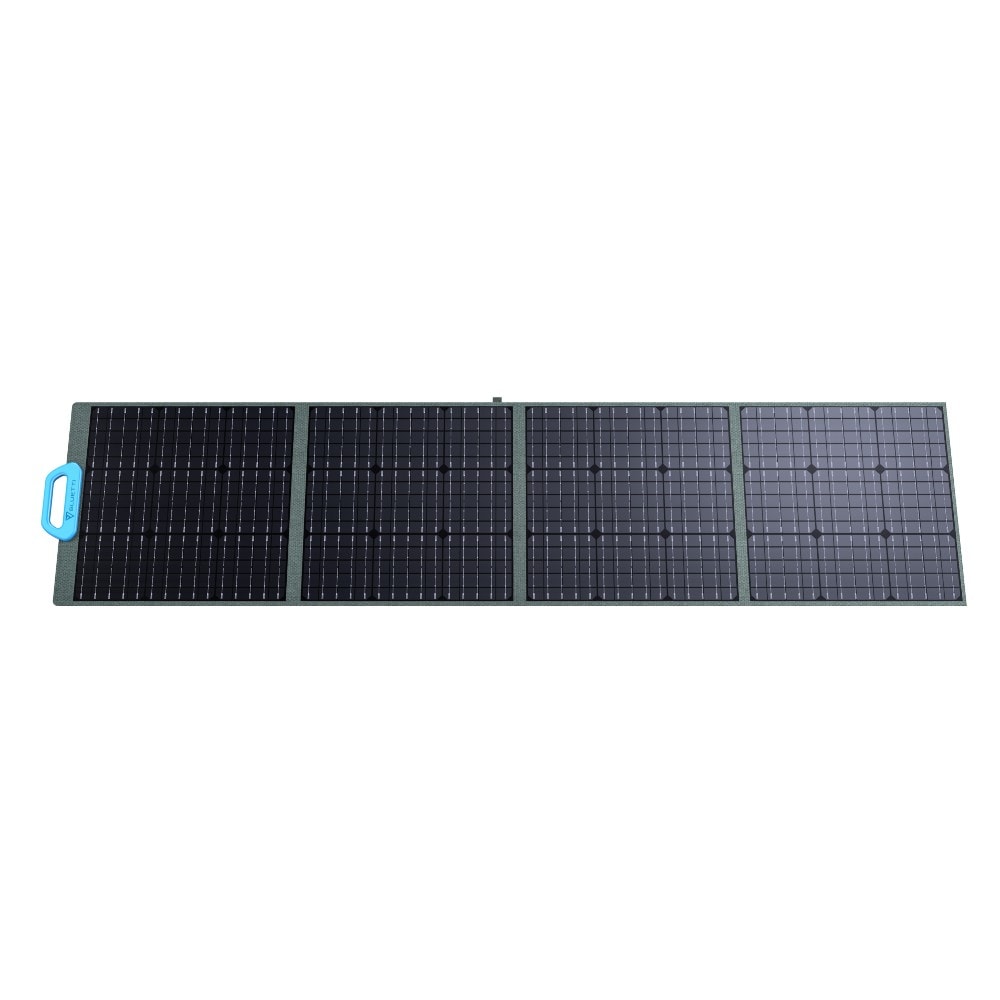

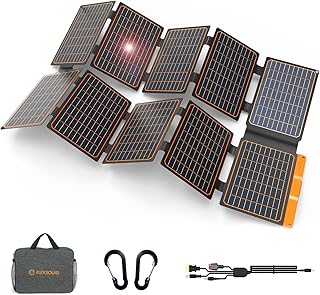

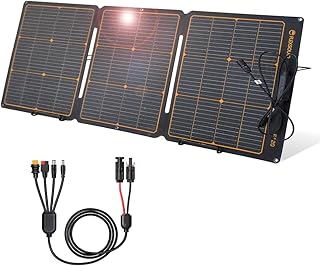

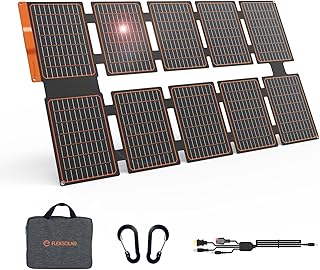

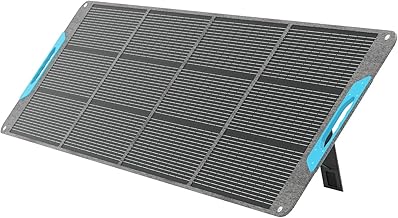

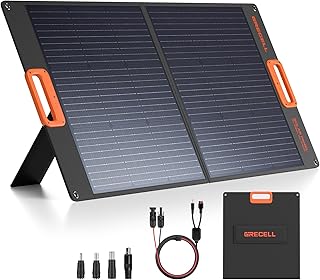

• Foldable (portable briefcase style)
  Use if you need easy transport, quick setup, and storage in a van/RV/tent. Avoid if you plan to leave panels out in weather long-term.

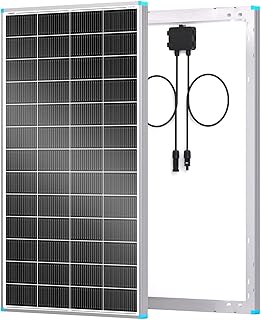

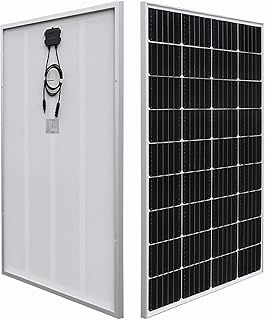

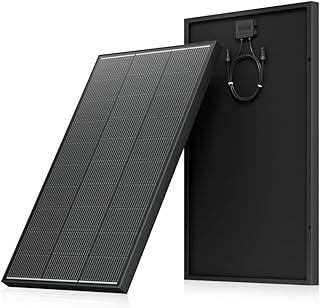

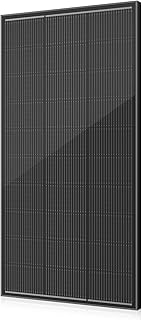

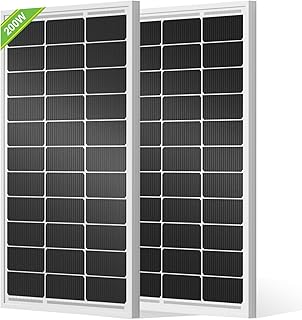

• Rigid (glass/aluminum)
  Use for patios, rooftops, sheds, or trailer racks where you can mount once and leave in place. Avoid if you need frequent repositioning or have strict weight constraints.

Realistic Output and Sizing

Expect 60–85% of the panel’s rated watts in clear mid‑day sun due to angle, temperature, and system losses. Use the ranges below to plan.

Charge-Time Examples

• 300 Wh power station + 120 W panel → ~70–100 W in sun: about 3–5 hours of strong sun (no loads while charging).
• 1,000 Wh power station + 200 W array → ~120–170 W: about 6–9 hours.
• 2,000 Wh power station + 350 W array → ~220–300 W: about 7–10 hours.

These are estimates; clouds, shade, high temperatures, and charging while powering devices will extend times.

Common Use Cases

• Van/RV travel: Keep a 12 V fridge, lights, and cameras running indefinitely with a 200–350 W array.
• Home patio or balcony: Rigid 200–400 W helps offset daytime loads like routers and laptops during outages.
• Job site / shed: Power small tools and charge batteries without running an engine.

Quick Setup

1. Place panels in direct sun; tilt near your latitude (increase tilt in winter, decrease in summer).
2. Connect MC4 leads to the solar input on your power station or to an MPPT controller rated for your system.
3. Verify polarity and watch input watts stabilize; re-aim at midday for a boost.

Series vs. Parallel Wiring

• Series (voltage adds): Use when your MPPT requires higher voltage. Ensure the cold‑weather open‑circuit voltage (Voc) of the string stays below the PV input max of your device.
• Parallel (current adds): Keeps voltage low and increases amps. Use MC4 Y‑branch connectors and keep total current within cable and input limits; add appropriately sized inline fuses when paralleling multiple strings.

Compatibility Notes

• MC4 connectors are widely compatible. Many Bluetti power stations include an MC4 adapter cable for their PV input port.
• Check your power station’s PV input window (voltage and current limits). Smaller units often accept low‑voltage single panels; larger units allow higher‑voltage series strings.
• Using a separate MPPT controller to charge a 12 V/24 V battery bank? Match the controller’s PV limits and your battery chemistry settings.

Maximizing Harvest

• Avoid shade: Even partial shading can drastically reduce output.
• Keep panels cool: Allow airflow behind panels; hot cells make less power.
• Clean briefly: Wipe dust, pollen, or salt with water and a soft cloth.
• Minimize voltage drop: Keep cable runs short; use thicker cable (e.g., 10–12 AWG for longer runs) and target <3% voltage drop.

Durability and Care

• Foldable panels are weather‑resistant but not meant for long, soaking rain or high winds; dry before storage.
• Rigid panels feature tempered glass and aluminum frames; mount securely and leave a gap for cooling.
• Do not crease, drop, or stand on panels. Protect cable strain reliefs and hinges.

Safety Essentials

• Never exceed the PV input voltage/current of your power station or controller; verify specs before re‑wiring strings.
• Check Voc at the lowest expected temperature (Voc rises in cold).
• Cover connectors before mating/unmating; avoid live shorting of MC4 leads.
• Secure panels against gusts; a sudden wind can flip or damage gear.

FAQ

Do I need Bluetti‑brand panels for a Bluetti power station?
No. Any panel with compatible voltage/current and MC4 connectors can work. Verify your model’s PV input specs and use the correct adapter.

Can I leave foldable panels outside full‑time?
Not recommended. They’re portable and weather‑resistant, but long exposure to rain, UV, and wind reduces lifespan. Use rigid panels for permanent installs.

What if it’s cloudy?
Expect reduced output—often 10–40% of rated power under overcast skies. Add panel capacity or shift heavy charging to sunnier periods.

How many panels can I chain?
As many as your input limits allow. Calculate total Voc (series) or total current (parallel) and stay within device specs.

Can these charge a 12 V lead‑acid or LiFePO4 battery directly?
Use an MPPT charge controller between the panels and the battery. Do not connect panels directly to a bare battery.
