Arlo Doorbell Camera

What it is

The Arlo Doorbell Camera is a smart video doorbell (available in wired and wireless versions) that lets you see, hear, and speak to visitors from the Arlo app. It provides HD video with a wide, head‑to‑toe view, infrared night vision, and motion alerts.

When to choose it

• Choose the wired model if you have existing doorbell wiring and want continuous power and your in‑home chime to ring.
• Choose the wireless model if you rent, lack wiring, or want a fast, drill‑and‑mount install with a rechargeable battery.
• Pick Arlo if you already use Arlo cameras or want optional local storage via an Arlo SmartHub/Base Station.
• Avoid battery models for very high‑traffic doors (hundreds of motions/day) unless you can recharge frequently or add a power option.

Key features and typical specs

• Video: HD (up to ~1536p on some models) with HDR; tall 1:1 view to see people and packages.
• Field of view: Wide, roughly 150–180° diagonal (varies by model).
• Night vision: Infrared for low‑light visibility.
• Motion alerts: Smart notifications to your phone; activity zones and package/person alerts available with subscription.
• Two‑way audio: Talk to visitors; quick‑reply messages available in the app.
• Power: Wired 16–24 VAC doorbell circuit or rechargeable battery (wireless model).
• Connectivity: 2.4 GHz Wi‑Fi; optional pairing with Arlo SmartHub for local storage on supported hubs.
• Compatibility: Arlo app (iOS/Android), Alexa, and Google Assistant.
• Weather resistance: Designed for outdoor use; use the included wedge/corner kit to improve view where needed.

Wired vs. Wireless: which to pick

Aspect	Wired	Wireless
Power	Unlimited via 16–24 VAC	Rechargeable battery (about 3–6 months per charge, activity‑dependent)
Chime	Rings existing mechanical/digital chime (with proper wiring)	Use app notifications; add Arlo Chime for indoor sounds
Install time	30–60 minutes (requires breaker off and wiring)	10–20 minutes; drill and mount
Best for	Homes with existing doorbell wiring	Renters, new installs without wiring

Installation at a glance

Wireless model (10–20 minutes)

1. Charge the doorbell fully.
2. Use the Arlo app to add the device and connect to 2.4 GHz Wi‑Fi.
3. Mount the bracket 48–52 inches from the ground; use the wedge/corner kit to frame visitors head‑to‑toe.
4. Snap the doorbell onto the bracket and secure the release screw.

Wired model (30–60 minutes)

1. Turn off power at the breaker. Verify no power at the doorbell wires.
2. Install the included chime adapter (if required) at your existing chime per Arlo’s diagram.
3. Mount the bracket and connect doorbell wires to the terminals (16–24 VAC).
4. Restore power, then use the Arlo app to connect to Wi‑Fi and finalize settings.

Safety: If you’re unsure about low‑voltage wiring, hire a qualified installer. Follow local regulations for audio/video recording.

Recording and plans

• No subscription: Live view, two‑way talk, motion alerts, and basic settings.
• With Arlo Secure: Cloud video history, rich notifications with previews, and advanced object detections (e.g., person, package). Plan details vary by region.
• Local storage (optional): Some Arlo SmartHub/Base Stations support recording to local storage; remote access may require a plan. Check your hub and firmware compatibility.

Setup tips for best performance

• Place near a strong 2.4 GHz Wi‑Fi signal (target RSSI -60 dBm or better).
• Mount 48–52 inches high; angle slightly down to capture packages.
• Use Activity Zones (with plan) to reduce false alerts from roads/sidewalks.
• In high‑traffic areas, lower motion sensitivity or set schedules to preserve battery.
• Clean the lens with a microfiber cloth monthly; update firmware when prompted.

Useful accessories

• Arlo Chime for audible alerts indoors (wireless setups).

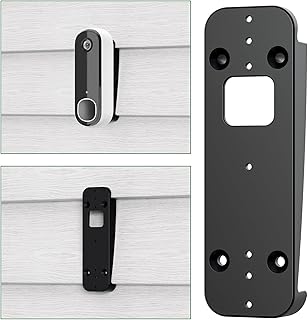

• Corner/wedge kit to correct viewing angle on narrow or offset trims.
• Protective cover for added weather protection and glare reduction.
• Power adapter/transformer upgrade (for wired installs that need proper 16–24 VAC).

Troubleshooting quick fixes

• Frequent offline events: Move your router closer or add a 2.4 GHz extender; avoid metal doors/frames blocking signal.
• False alerts: Narrow the motion area and exclude sidewalks; reduce sensitivity.
• Battery drains fast: Lower video quality, shorten clip length, or reduce notifications; consider wired power if feasible.
• No chime ring (wired): Confirm chime adapter is installed and transformer is 16–24 VAC.

FAQ

Do I need a subscription?

No for live view, two‑way talk, and basic alerts. A paid plan is needed for cloud video history and advanced detections.

Will it ring my existing chime?

Yes with the wired model and compatible mechanical/digital chimes when installed with the included chime adapter. Wireless models use app notifications or an Arlo Chime accessory.

Does it support 5 GHz Wi‑Fi?

Most Arlo doorbell models use 2.4 GHz Wi‑Fi for range and reliability. Connect to a 2.4 GHz SSID.

How long does the battery last?

Typically 3–6 months per charge on the wireless model, depending on motion frequency, video settings, and temperature.

Can multiple people receive alerts?

Yes. You can grant access to family members in the Arlo app so they receive notifications and can answer the door.
